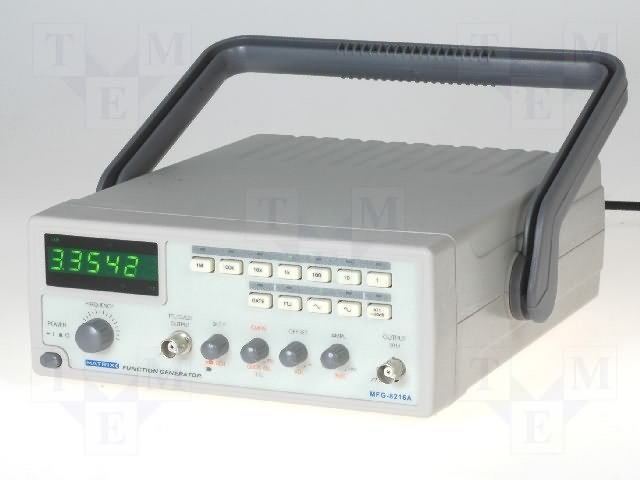

MFG-8216A-1 Signala generators
MFG-8216A-1 Signala generators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

MFG-8216A-1 Signala generators

Cena: 255.74 €
00013229
MFG-8216A-1
0
  • Apraksts

    • Specification
    • Generator type function
    • Frequency measuring range 0,3...3MHz
    • Display LED 6 digit
    • Input impedance 1MΩ;
    • Impedance 50Ω;
    • Frequency meter 0.3...3MHz
    • Impedance tolerance ±10%
    • Amplitude Ͱ5;10Vpp (on 50Ω; load)
    • Attenuation -20 dB ± 1 dB x 2
    • Duty cycle coefficient adjustment 80%:20%:80% at 1MHz
    • Distortion of sinusoidal waveform Ͱ4; 1%, 0,3Hz-200KHz
    • Flatness of sinusoidal waveform <0,3dB, 0,3Hz-300KHz, <0,5dB, 300KHz-3MHz
    • Sawtooth waveform linearity Ͱ5; 95%,100KHz 3MHz/5MHz, Ͱ5; 98%, 0.3Hz 100KHz
    • Rectangular waveform symmetry ± 2 %, 0.3Hz-100KHz
    • Rectangular impulse rise time Ͱ4;80ns
    • CMOS output 4VppͰ5;±1Vpp - 14,5Vpp ± 0,5Vpp
    • TTL output Ͱ5; 3Vpp
    • Voltage controlled frequency 0-10V ± 1V (100:1), 10kΩ; impedance
    • Time base triggering 0.5...30s
    • Power supply 115/230 VAC ±15%, 50/60Hz
    • Weight 2.2kg
    • Dimensions 91 x 251 x 291mm
    • Features:
    • 50Ω; signal main output with adjustable reference level and 20 dB gain function
    • other output for TTL and CMOS signals
    • adjustable duty cycle with inversion
    • low distortion waveforms (sine, sawtooth and rectangular)
    • built-in frequency meter
    • frequency external voltage control
    • Standard equipment:
    • test leads with BNC connector
    • mains cable
    • Additional information
    • Gross weight:2.71 kg
