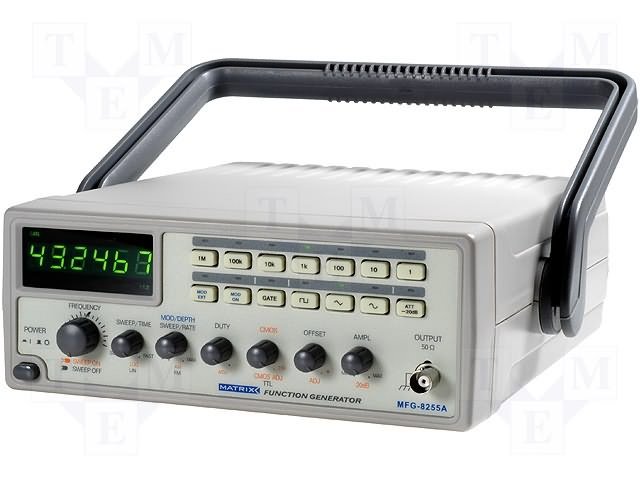

MFG-8255A-1 Signala generators

Cena: 275.53 €
00010966
MFG-8255A-1
0
  • Apraksts

    • Specification
    • Generator type function
    • Frequency measuring range 0,5...5MHz
    • Display LED 6 digit
    • Input impedance 1MΩ;
    • Impedance 50Ω;
    • Frequency meter 0.5...5MHz
    • Impedance tolerance ±10%
    • Amplitude Ͱ5;10Vpp (on 50Ω; load)
    • Attenuation -20 dB ± 1 dB x 2
    • Duty cycle coefficient adjustment 80%:20%:80% at 1MHz
    • Distortion of sinusoidal waveform Ͱ4; 1%, 0,3Hz-200KHz
    • Flatness of sinusoidal waveform Ͱ4;0,3dB, <500KHz, Ͱ4;1dB, <5MHz
    • Sawtooth waveform linearity Ͱ5; 95%, 100KHz-5MHz, Ͱ5;98%, 0,5Hz-100KHz
    • Rectangular waveform symmetry ± 2 %, 1Hz-100KHz
    • Rectangular impulse rise time Ͱ4;50ns
    • CMOS output 4VppͰ5;±1Vpp - 14,5Vpp ± 0,5Vpp
    • TTL output Ͱ5; 3Vpp
    • Voltage controlled frequency 0-10V ± 1V (100:1), 10kΩ; impedance
    • Time base triggering 0.5...30s
    • Power supply 115/230 VAC ±15%, 50/60Hz
    • Weight 2.2kg
    • Dimensions 91 x 251 x 291mm
    • Features:
    • 50Ω; signal main output with adjustable reference level and 20 dB gain function
    • other output for TTL and CMOS signals
    • adjustable duty cycle with inversion
    • low distortion waveforms (sine, sawtooth and rectangular)
    • adjustable triggering speed and time bease with in linear and logarithmic modes
    • internally or externally controlled AM and FM modulation
    • built-in frequency meter
    • frequency external voltage control
    • Standard equipment:
    • test leads with BNC connector
    • mains cable
    • Additional information
    • Gross weight:3.19 kg
