Apraksts

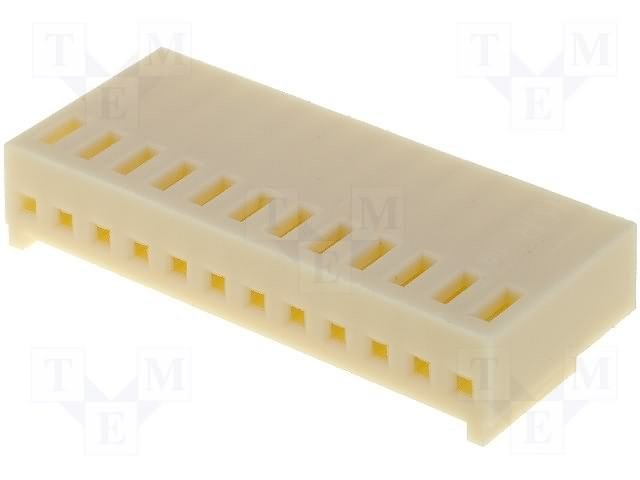

• Specification
• Connector plug
• Connector type wire-board
• Connector type female
• Number of pins 12
• Connector variant w/o terminals
• Contacts pitch 2.54mm
• Mechanical mounting for cable
• Rated voltage 250V
• Rated current 3A
• Flammability rating UL94V-0
• Operating temperature -25...85°C
• Type of pin configuration 1x12
• Enclosure material polyamide

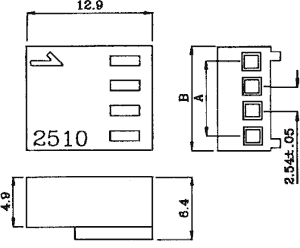

• A dimension 27.94mm
• B dimension 30.48mm

Parametri

2.54mm
12
Ligzda
Uz vadu
