Apraksts

• Manufacturer NINIGI
• Connector socket
• Type of connector wire-board
• Kind of connector male
• Connector series NS25
• Contacts pitch 2.54mm
• Number of pins 2
• Electrical mounting THT
• Rated voltage  250V
• Current rating 3A
• Contact plating tinned
• Flammability rating UL94V-0
• Operating temperature -25...85°C
• Type of pin configuration 1x2
• Max. contact resistance: 10mΩ
• Spatial orientation  angled 90°
• Enclosure material polyamide

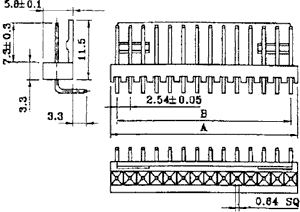

• A dimension 5.08mm
• B dimension 2.54mm
• Leads dimensions 0.64x0.64x3.3mm
• Dimensions see
• Additional information
• Gross weight: 0.228 g
• Manufacturer part number: NS25-W2K

Parametri

2.54mm
2
Spraudnis
THT

Papildu dokumentācija
