Apraksts

• Manufacturer NINIGI
• Connector socket
• Connector type wire-board
• Connector type male
• Number of pins 6
• Contacts pitch 2.54mm
• Electrical mounting THT
• Connector series NS25
• Rated voltage 250V
• Rated current 3A
• Contact plating tinned
• Max. contact resistance: 10mΩ
• Flammability rating UL94V-0
• Operating temperature -25...85°C
• Type of pin configuration 1x6
• Spatial orientation straight
• Enclosure material polyamide

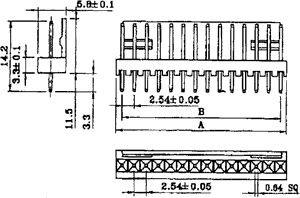

• A dimension 15.24mm
• B dimension 12.7mm
• Leads dimensions 0.64 x 0.64 x 3.3mm

Parametri

2.54mm
6
Spraudnis
THT

Papildu dokumentācija
