Apraksts

• Manufacturer NINIGI
• Connector plug
• Type of connector wire-board
• Kind of connector female
• Connector series NS25
• Contacts pitch 2.54mm
• Number of pins 8
• Connector variant w/o contacts
• Mechanical mounting for cable
• Rated voltage  250V
• Current rating 3A
• Flammability rating UL94V-0
• Operating temperature -25...85°C
• Type of pin configuration 1x8
• Enclosure material polyamide

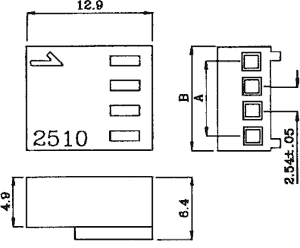

• A dimension 17.78mm
• B dimension 20.8mm
• Dimensions see
• Additional information
• Gross weight: 0.76 g
• Manufacturer part number: NS25-G8

Parametri

2.54mm
8
Ligzda
Uz vadu

Papildu dokumentācija
