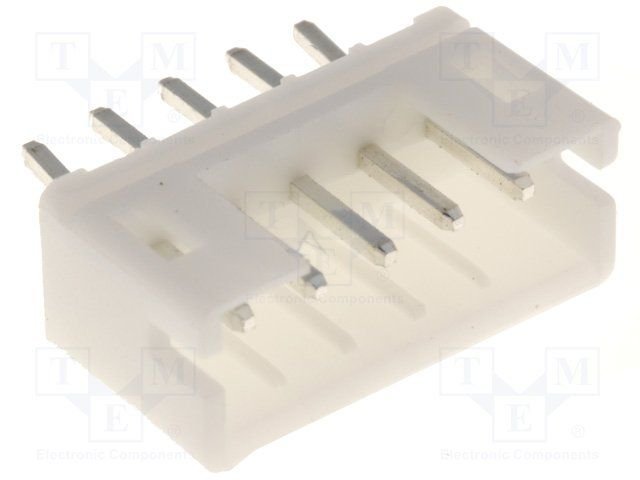

Apraksts

• Manufacturer NINIGI
• Connector socket
• Connector type wire-board
• Connector type male
• Number of pins 5
• Contacts pitch 2mm
• Electrical mounting THT
• Maximum current 1A
• Contact plating tinned
• Max. contact resistance: 20mΩ
• Flammability rating UL94V-0
• Operating temperature -25...85°C
• Type of pin configuration 1x5
• Max. operating voltage 100V
• Spatial orientation straight
• Enclosure material polyamide
• Width 12.1mm

Parametri

THT
5
2mm
Spraudnis
THT

Papildu dokumentācija
