Apraksts

• Specification
• Switch type slide
• Stable positions number 2-position
• Contacts configuration SPDT
• AC contacts rating
• (at resistance load) 1.5 A / 250 VAC
• Switching method ON-ON
• Leads for PCB, angled

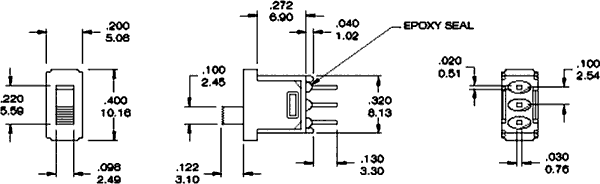

• Body dimensions 8.16 x 5.1 x 8mm
• Mounting THT
• Operating temperature -20...85°C
• Knob height 2.95mm
• Number of positions 2
• Min. insulation resistance 100MΩ;
• Max. contact resistance: 50mΩ;
• Contact plating silver plated
• Contact material copper alloy
• Actuator material polyamide
• Terminal pitch 2.54mm
• Body material stainless steel
• Flammability rating UL94V-2
• Terminals material copper alloy
• Terminals plating silver plated
• Electrical life 6000cycles

Parametri

SPDT
5A/250VAC
1
ON-ON
2

Papildu dokumentācija
