Apraksts

• Specification
• Switch type slide
• Stable positions number 2-position
• Contacts configuration SPDT
• AC contacts rating
• (at resistance load) 3 A / 120 VAC
• DC contacts rating
• (at resistance load) 3 A / 28 VDC
• Switching method ON-ON
• Number of terminals 3
• Leads for PCB, straight

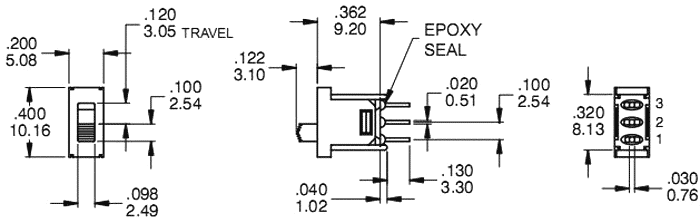

• Body dimensions 10.16 x 5.08 x 9.2mm
• Mounting THT
• Operating temperature -30...85°C
• Knob height 3.1mm
• Number of positions 2
• Min. insulation resistance 1000MΩ;
• Mechanical durability 30000cycles

Parametri

SPDT
3A/120VAC
3A/28VDC
1
ON-ON
2
