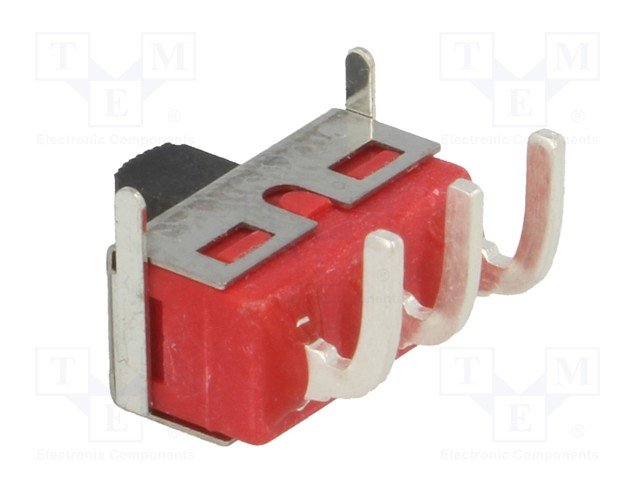

Apraksts

• Specification
• Switch type slide
• Stable positions number 2-position
• Contacts configuration SPDT
• AC contacts rating
• (at resistance load) 5 A / 120 VAC
• DC contacts rating
• (at resistance load) 5 A / 28 VDC
• Switching method ON-ON
• Number of terminals 3
• Leads for PCB, angled

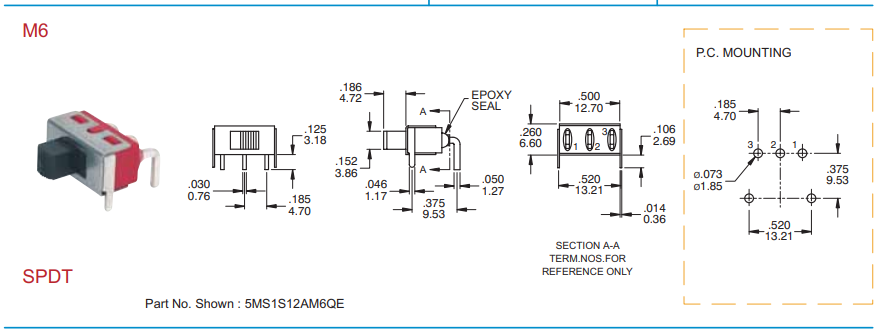

• Body dimensions 12.7 x 6.1 x 6.35mm
• Mounting THT
• Operating temperature -30...85°C
• Knob height 5.08mm
• Number of positions 2
• Min. insulation resistance 1000MΩ;
• Mechanical durability 30000cycles

Parametri

SPDT
1
ON-ON
2
5A/120VAC
5A/28VDC

Papildu dokumentācija
