Apraksts

• Manufacturer SR PASSIVES
• Type of potentiometer slide
• Resistance  10kΩ
• Power 500mW
• Mounting THT
• Tolerance ±20%
• Characteristics linear
• Body material metal
• Body dimensions 88x12.5x11mm
• Potentiometer features mono
• Shaft dimensions 4 x 1.2 x 15mm
• Track material carbon
• Max. operating voltage 500V
• Track length 60mm

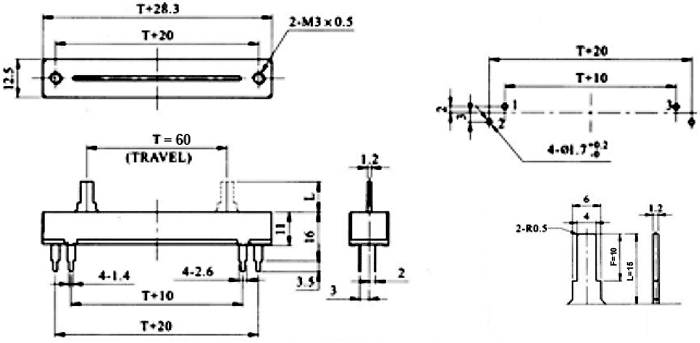

• Dimensions see
• Additional information
• Gross weight: 15 g
• Manufacturer part number: CDE23N-60-B10K

Parametri

10K
0.5W
Vienapgriezienu
Lineāre atkarība
Mono
