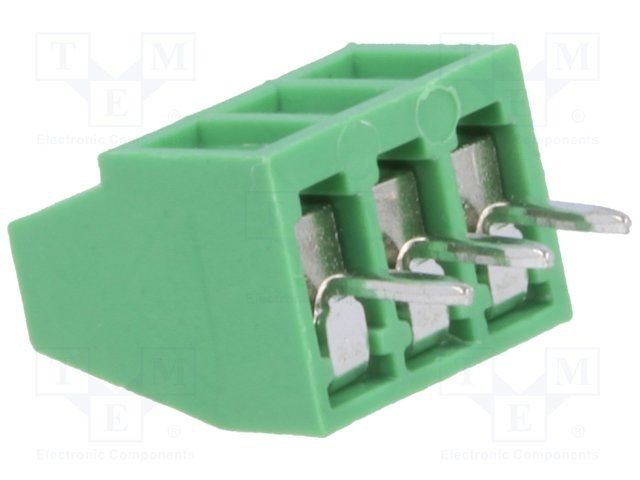

Terminal blocks PCB, 3pin, 2.54mm, 1.0mm2, 130V/8A, 7.5x6.27x8.5mm, leņķisks 90°
Terminal blocks PCB, 3pin, 2.54mm, 1.0mm2, 130V/8A, 7.5x6.27x8.5mm, leņķisks 90°
Terminal blocks PCB, 3pin, 2.54mm, 1.0mm2, 130V/8A, 7.5x6.27x8.5mm, leņķisks 90°
Terminal blocks PCB, 3pin, 2.54mm, 1.0mm2, 130V/8A, 7.5x6.27x8.5mm, leņķisks 90° Terminal blocks PCB, 3pin, 2.54mm, 1.0mm2, 130V/8A, 7.5x6.27x8.5mm, leņķisks 90° Terminal blocks PCB, 3pin, 2.54mm, 1.0mm2, 130V/8A, 7.5x6.27x8.5mm, leņķisks 90°

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Terminal blocks PCB, 3pin, 2.54mm, 1.0mm2, 130V/8A, 7.5x6.27x8.5mm, leņķisks 90°

Cena: 0.50 €
00026678
DG308-2.54-03P
20+
  • Apraksts

    • Manufacturer DEGSON ELECTRONICS
    • Type of connector PCB terminal block
    • Spatial orientation angled 90°
    • Contacts pitch 2.54mm
    • Number of ways 3
    • Mechanical mounting on PCBs
    • Electrical mounting THT, cage clamp, screw terminal
    • Wire cross section 1mm2
    • Wire size 26...18AWG
    • Connector terminal
    • Contact plating tinned
    • Current rating 8A
    • Height 8.5mm
    • Colour green
    • Rated voltage 130V
    • Body material PA66
    • Length 7.62mm
    • Contact material phosphor bronze
    • Operating temperature -40...105°C
    • Depth 6.27mm
    • Flammability rating UL94V-0
    • Type of pin configuration 1x3
    • Conform to the norm CE, UL, VDE Additional information
    • Gross weight: 0.82 g
