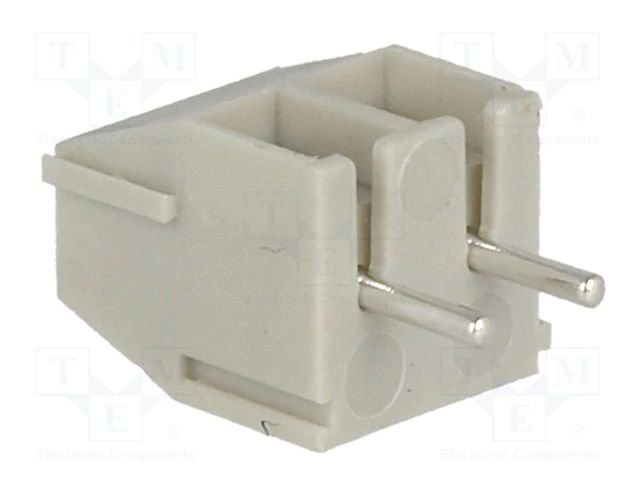

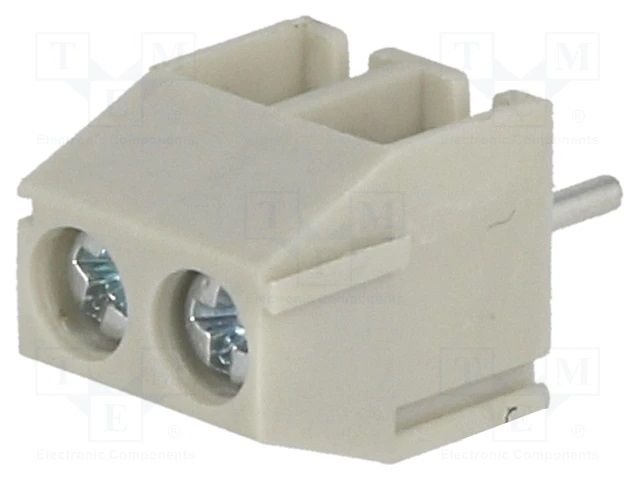

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Terminal blocks PCB, 2pin, 3.5mm, 0.5...1.5mm2, 300V/10A, 8.4x7x6.8mm, leņķisks, peleks

Cena: 0.29 €
00027852
TB-3.5-P-2P/GY
33
  • Apraksts

    • Manufacturer NINIGI
    • Type of connector PCB terminal block
    • Spatial orientation  angled 90°
    • Contacts pitch 3.5mm
    • Number of ways 2
    • Mechanical mounting on PCBs
    • Electrical mounting screw terminal,  THT
    • Connector variant with wire protector
    • Connector terminal
    • Contact plating tinned
    • Current rating 10A
    • Height 8.4mm
    • Colour grey
    • Rated voltage  300V
    • Body material polyamide
    • Stripped wire length 5mm
    • Connectors features assembling possibility
    • Length 7mm
    • Contact material brass
    • Operating temperature -40...105°C
    • Depth 6.8mm
    • Flammability rating UL94V-0
    • Type of pin configuration 1x2
    • Soldering temperature 250°C / 5 s
    • Wire cross section 0.5...1.5mm2
    • Additional information
    • Gross weight: 0.82 g
    • Manufacturer part number: TB-3.5-P-2P/GY

    Parametri

    2
    3.5mm
    Aizspiednis kontakts PCB
    Leņķisks 90°
    Terminal blocks PCB
