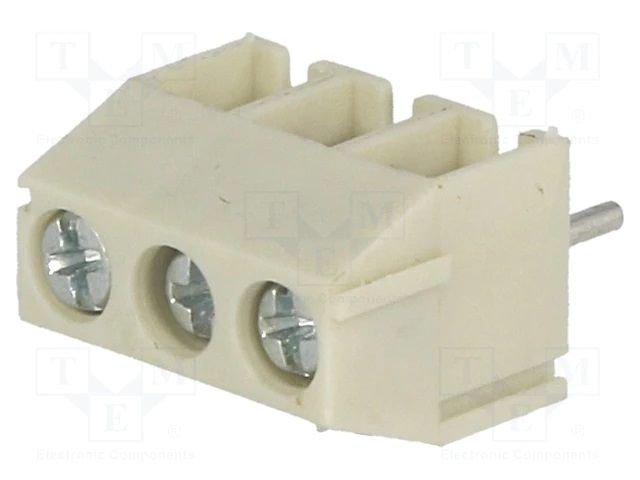

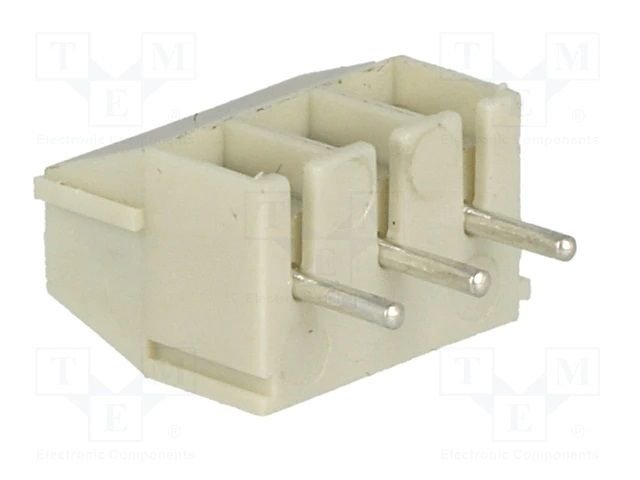

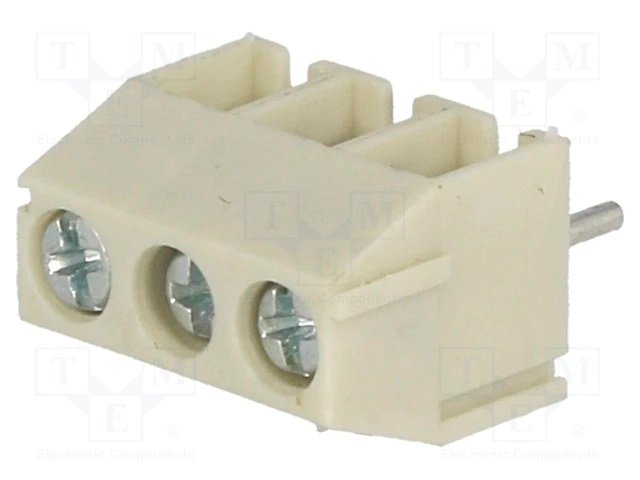

Apraksts

• Manufacturer NINIGI
• Type of connector PCB terminal block
• Spatial orientation  angled 90°
• Contacts pitch 3.5mm
• Number of ways 3
• Mechanical mounting on PCBs
• Electrical mounting screw terminal,  THT
• Connector variant with wire protector
• Connector terminal
• Contact plating tinned
• Current rating 10A
• Height 8.4mm
• Colour grey
• Rated voltage  300V
• Body material polyamide
• Stripped wire length 5mm
• Connectors features assembling possibility
• Length 10.5mm
• Contact material brass
• Operating temperature -40...105°C
• Depth 6.8mm
• Flammability rating UL94V-0
• Type of pin configuration 1x3
• Soldering temperature 250°C / 5 s
• Wire cross section 0.5...1.5mm2
• Additional information
• Gross weight: 1.428 g
• Manufacturer part number: TB-3.5-P-3P/GY

Parametri

3
3.5mm
Aizspiednis kontakts PCB
Leņķisks 90°
Terminal blocks PCB

Papildu dokumentācija
