Apraksts

• Manufacturer DEGSON ELECTRONICS

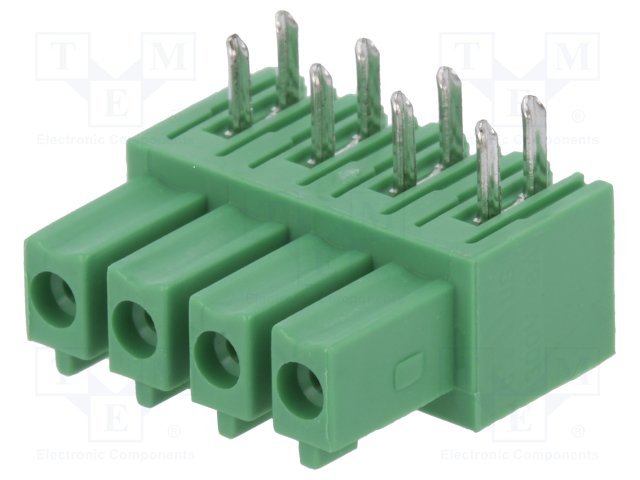

• Type of connector pluggable terminal block
• Contacts pitch 3.81mm
• Number of ways 4
• Spatial orientation angled 90°
• Connector socket
• Kind of connector female
• Mechanical mounting on PCBs
• Electrical mounting THT
• Colour green
• Rated voltage 250V
• Current rating 7A
• Type of pin configuration 1x4
• Locking system friction lock
• Body material PA66
• Flammability rating UL94V-0
• Conform to the norm CE, UL
• Contact plating tinned
• Operating temperature -40...105°C
• Contact material phosphor bronze
• Number of pins 4 Additional information
• Gross weight: 1.247 g

Parametri

4
Ligzda
3.81mm
Leņķisks 90°
Terminal blocks PCB
