Apraksts

• Manufacturer DEGSON ELECTRONICS

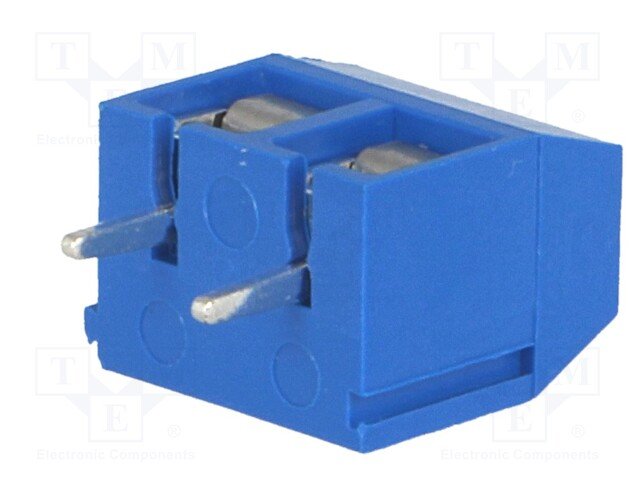

• Type of connector PCB terminal block
• Spatial orientation  angled 90°
• Contacts pitch 5mm
• Number of ways 2
• Mechanical mounting on PCBs
• Electrical mounting screw terminal,  THT
• Connector variant with wire protector
• Connector terminal
• Contact plating tinned
• Current rating 15A
• Height 10mm
• Colour blue
• Rated voltage  300V
• Body material PBT
• Connectors features assembling possibility
• Length 10mm
• Contact material brass
• Operating temperature -30...120°C
• Depth 7.6mm
• Flammability rating UL94V-0
• Type of pin configuration 1x2
• Conform to the norm CE,  UL,  VDE
• Wire size 22AWG...14AWG
• Wire cross section 1.5mm2

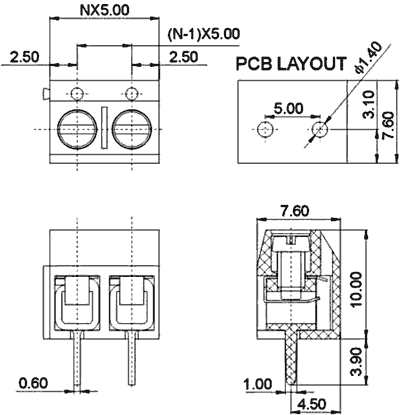

• Dimensions see
• Additional information
• Gross weight: 1.59 g
• Manufacturer part number: DG306-5.0-02P-12-00A(H)

Parametri

2
Taisns
5.08mm
Aizspiednis kontakts PCB
Terminal blocks PCB

Papildu dokumentācija
