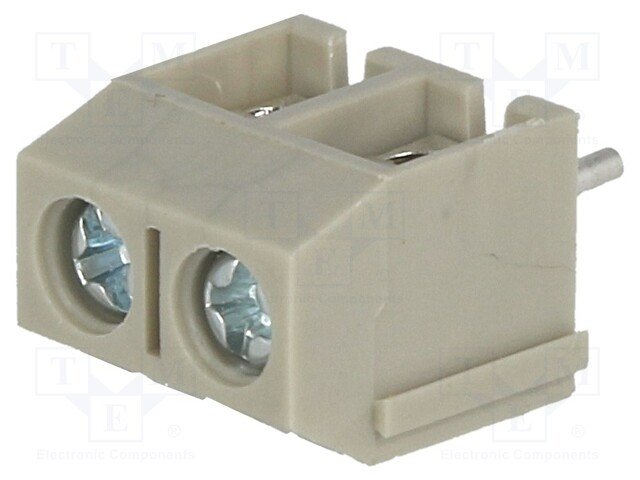

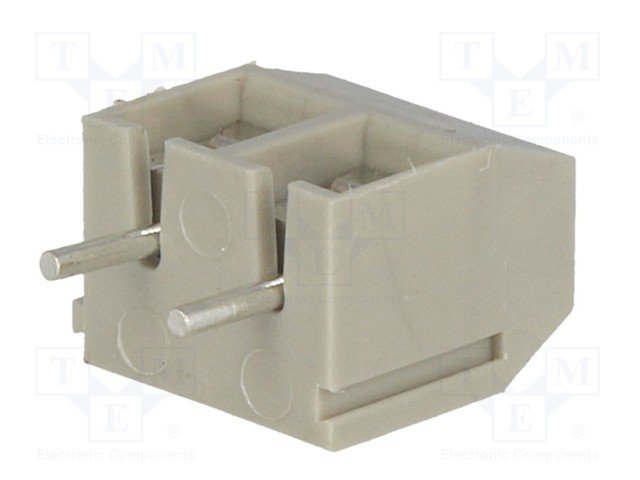

Terminal Blocks PCB, ar skrūvēm, 2pin, 5mm, 1.5mm2, 250V/16A, 12.5x9x10mm, peleka krasa
Terminal Blocks PCB, ar skrūvēm, 2pin, 5mm, 1.5mm2, 250V/16A, 12.5x9x10mm, peleka krasa
Terminal Blocks PCB, ar skrūvēm, 2pin, 5mm, 1.5mm2, 250V/16A, 12.5x9x10mm, peleka krasa
Terminal Blocks PCB, ar skrūvēm, 2pin, 5mm, 1.5mm2, 250V/16A, 12.5x9x10mm, peleka krasa Terminal Blocks PCB, ar skrūvēm, 2pin, 5mm, 1.5mm2, 250V/16A, 12.5x9x10mm, peleka krasa Terminal Blocks PCB, ar skrūvēm, 2pin, 5mm, 1.5mm2, 250V/16A, 12.5x9x10mm, peleka krasa

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Terminal Blocks PCB, ar skrūvēm, 2pin, 5mm, 1.5mm2, 250V/16A, 12.5x9x10mm, peleka krasa

Cena: 0.27 €
00024037
TB-5.0-P-2P/GY
109
  • Apraksts

    • Manufacturer NINIGI
    • Connector type terminal block
    • Spatial orientation angled 90°
    • Max cable section 1.5mm2
    • Contacts pitch 5mm
    • Number of ways 2
    • Contact plating tinned
    • Rated current 16A
    • Flammability rating UL94V-0
    • Colour grey
    • Contact material brass
    • Rated voltage 250V
    • Body material PBT
    • Electrical mounting THT, screw terminal
    • Stripped wire length 5mm
    • Connectors features assembling possibility
    • Length 10mm
    • Height 10mm
    • Operating temperature -30...120°C
    • Depth 7.6mm
    • Conform to the norm CE
    • Soldering temperature 250°C / 5 s

    Parametri

    2
    Taisns
    5.08mm
    Aizspiednis kontakts PCB
    Terminal blocks PCB
