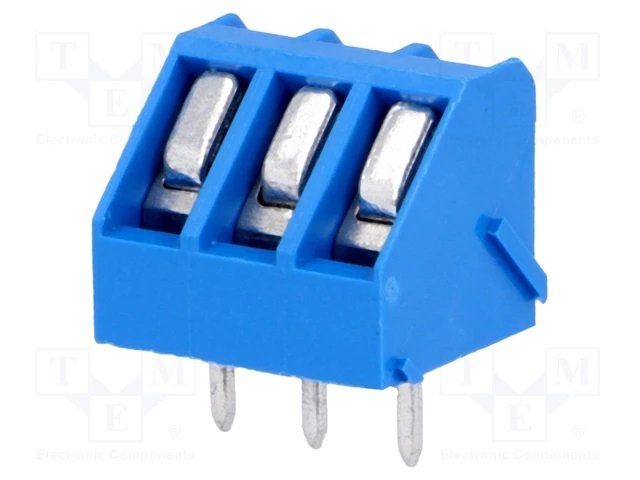

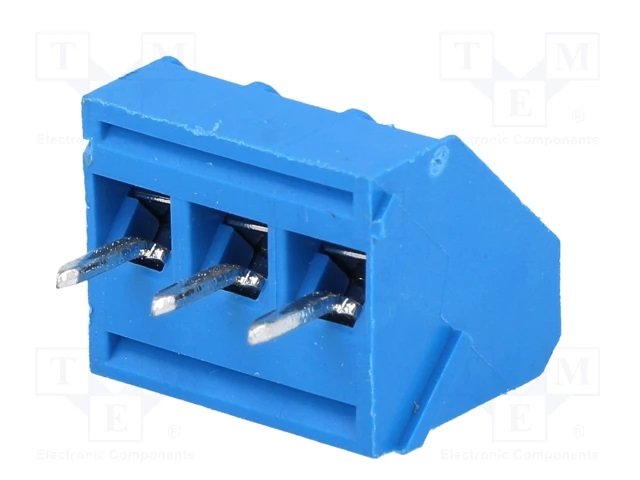

Apraksts

• Manufacturer NINIGI
• Type of connector PCB terminal block
• Spatial orientation  angled 45°
• Contacts pitch 5mm
• Number of ways 3
• Mechanical mounting on PCBs
• Electrical mounting screw terminal,  THT
• Connector terminal
• Contact plating tinned
• Current rating 16A
• Height 12mm
• Colour blue
• Rated voltage  250V
• Body material polyamide
• Stripped wire length 5mm
• Connectors features assembling possibility
• Length 15mm
• Contact material brass
• Operating temperature -40...105°C
• Depth 12.5mm
• Flammability rating UL94V-0
• Type of pin configuration 1x3
• Soldering temperature 250°C / 5 s
• Wire size 22AWG...12AWG
• Wire cross section 2.5mm2

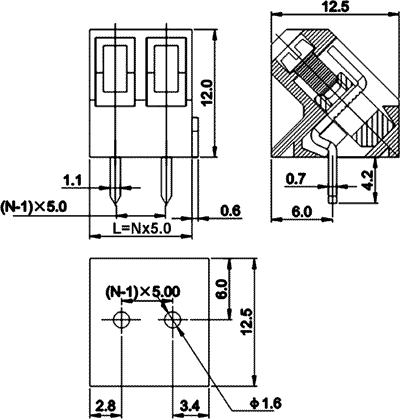

• Dimensions see
• Additional information
• Gross weight: 3.897 g
• Manufacturer part number: TB-5.0-K45-3/BL

Parametri

3
5.08mm
Aizspiednis kontakts PCB
Leņķisks 45°
Terminal blocks PCB

Papildu dokumentācija
