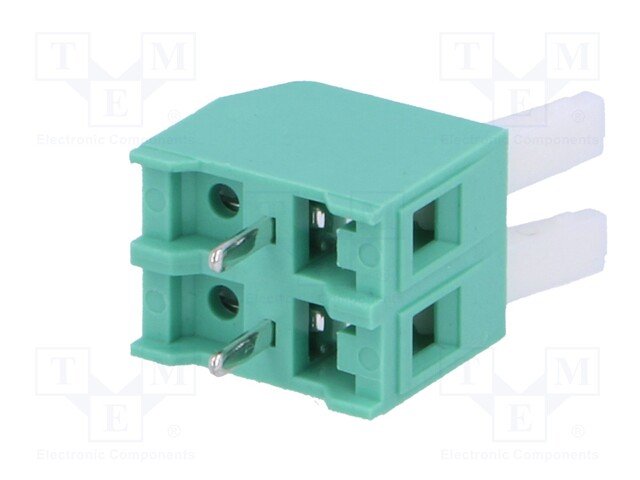

Apraksts

• Manufacturer NINIGI
• Type of connector PCB terminal block
• Spatial orientation  straight
• Contacts pitch 5mm
• Number of ways 2
• Mechanical mounting on PCBs
• Electrical mounting spring clamp,  THT
• Connector variant with lever
• Connector terminal
• Contact plating tinned
• Current rating 11A
• Height 11.4mm
• Colour green
• Rated voltage  250V
• Body material PA66
• Length 10.15mm
• Contact material brass
• Operating temperature -55...100°C
• Depth 13mm
• Flammability rating UL94V-0
• Type of pin configuration 1x2
• Conform to the norm UL
• Wire size 22AWG...18AWG
• Wire cross section 0.5mm2
• Additional information
• Gross weight: 1.563 g
• Manufacturer part number: TB-5.0-PT-2P

Parametri

2
Taisns
5.08mm
Aizspiednis kontakts PCB
Terminal blocks PCB

Papildu dokumentācija
