Apraksts

• Manufacturer NINIGI
• Type of connector pluggable terminal block
• Contacts pitch 5.08mm
• Number of ways 3
• Spatial orientation  straight
• Connector socket
• Kind of connector male
• Mechanical mounting on PCBs
• Electrical mounting THT
• Colour green
• Rated voltage  300V
• Type of pin configuration 1x3
• Current rating 15A
• Body material polyamide
• Locking system for latch
• Flammability rating UL94V-0
• Contact plating tinned
• Operating temperature -40...105°C
• Contact material brass
• Number of pins 3
• Height 11.9mm
• Depth 8mm
• Soldering temperature 250°C / 5 s

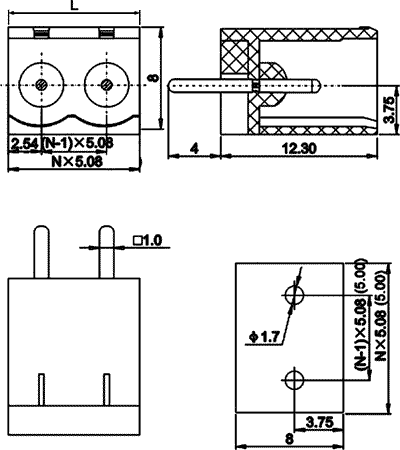

• Dimensions see
• Additional information
• Gross weight: 1.198 g
• Manufacturer part number: TBG-5-PW-3P/GN

Parametri

3
Spraudnis
Taisns
5.08mm
Terminal blocks PCB

Papildu dokumentācija
