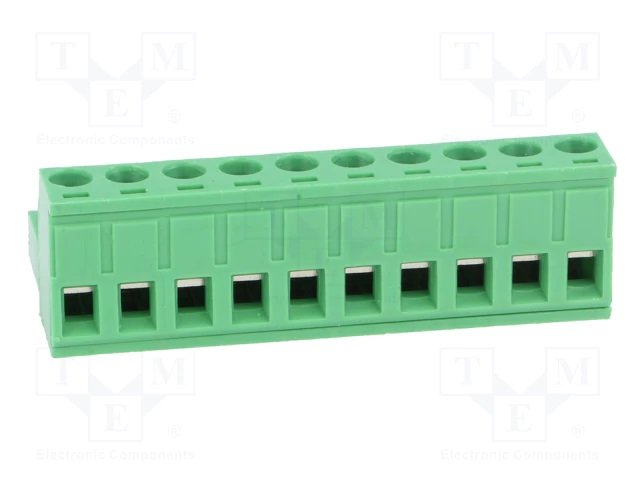

Apraksts

• Specification
• Connector type pluggable terminal block
• Connector plug
• Connector type female
• Max core section 2.5mm2
• Contacts pitch 5.08mm
• Number of ways 10
• Contact plating tinned
• Rated current 15A
• Flammability rating UL94V-0
• Colour green
• Contact material brass
• Rated voltage 300V
• Body material polyamide
• Stripped wire length 8mm
• Length 50.8mm
• Height 15.2mm
• Operating temperature -40...105°C
• Depth 17.7mm
• Test voltage 1.5kV
• Soldering temperature 250°C / 5 s

Parametri

10
Ligzda
Taisns
5.08mm
Terminal blocks vadam

Papildu dokumentācija
