Apraksts

• Manufacturer NINIGI
• Type of connector pluggable terminal block
• Contacts pitch 5.08mm
• Number of ways 7
• Spatial orientation  straight
• Connector plug
• Kind of connector female
• Mechanical mounting for cable
• Electrical mounting screw terminal
• Colour green
• Rated voltage  300V
• Type of pin configuration 1x7
• Current rating 15A
• Body material polyamide
• Locking system latch
• Flammability rating UL94V-0
• Contact plating tinned
• Operating temperature -40...105°C
• Contact material brass
• Number of terminals 7
• Height 15.2mm
• Depth 17.7mm
• Length 35.56mm
• Stripped wire length 8mm
• Wire cross section 2.5mm2

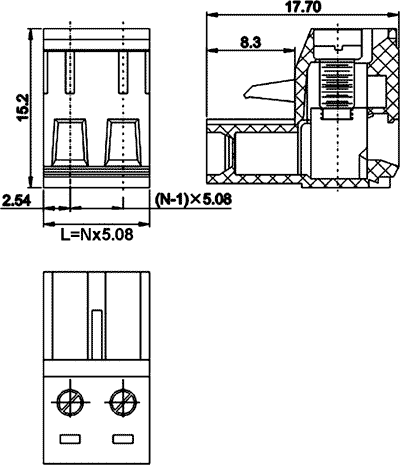

• Dimensions see
• Additional information
• Gross weight: 10.355 g
• Manufacturer part number: TBW-5-7P/GN

Parametri

7
Ligzda
Taisns
5.08mm
Terminal blocks vadam
