Apraksts

• Manufacturer: Texas Instruments
• Product Category: Audio Amplifiers
• RoHS: Details

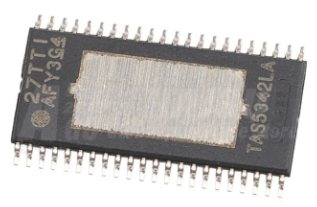

• Series: TAS5342LA
• Product: Audio Amplifiers
• Class: Class-AB
• Output Power: 150 W
• Mounting Style: SMD/SMT
• Type: 1-Channel Mono or 2-Channel Stereo or 4-Channel Stereo
• Package/Case: HTSSOP-44
• Audio - Load Impedance: 8 Ohms
• THD plus Noise: 0.09 %
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Cut Tape
• Packaging: MouseReel
• Packaging: Reel
• Description/Function: Speaker
• Height: 1.05 mm
• Input Type: Single
• Length: 14 mm
• Output Type: 1-Channel Mono, 2-Channel Stereo, 4-Channel Stereo
• Supply Type: Triple
• Width: 6.1 mm
• Brand: Texas Instruments
• Number of Channels: 4 Channel
• Supply Current - Max: 17 mA, 12 mA, 20 mA
• Dual Supply Voltage: 12 V, 32 V
• Maximum Dual Supply Voltage: 13.2 V, 34 V
• Minimum Dual Supply Voltage: 0 V, 10.8 V
• Moisture Sensitive: Yes
• Operating Supply Current: 7.1 mA, 5.9 mA, 10.5 mA
• Output Signal Type: Differential, Single
• Pd - Power Dissipation: 3000 mW
• Product Type: Audio Amplifiers
