Apraksts

• Manufacturer OMRON OCB
• Type of switch microswitch TACT
• Contacts configuration  SPST-NO
• Number of positions 2
• DC contacts rating @R  0.05A / 24V DC
• Mounting SMT
• Illumination none
• Operating Force 1.57N

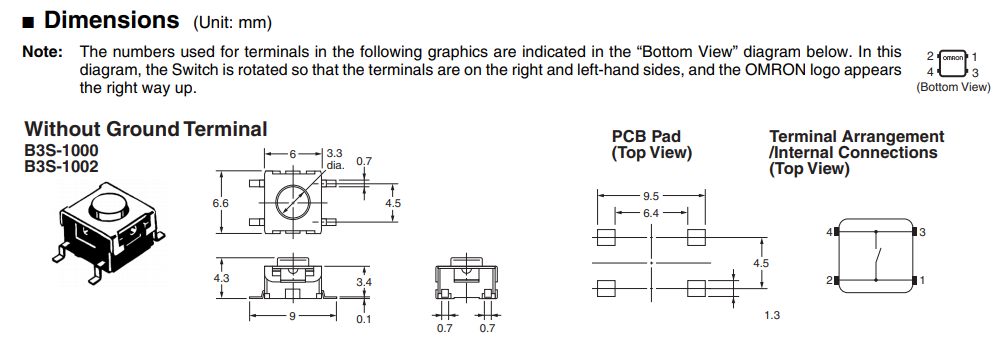

• Body dimensions 6x6mm
• Button height  4.3mm
• Switching method  OFF-(ON)
• Terminal pitch 4.5x9mm
• Operating temperature -25...70°C
• Button shape round
• Actuator colour ivory
• Key stroke 0.25mm
• Leads for PCB
• Contact material phosphor bronze
• Max. contact resistance: 100mΩ
• Min. insulation resistance 100MΩ
• Manufacturer series B3S
• Contact plating silver plated
• Mechanical durability 500000 cycles
• Stable positions number 1
• Additional information
• Gross weight: 0.411 g
• Manufacturer part number: B3S-1000P

Parametri

SMD
SPST-NO
0.05A/24VDC
6x6x3.65mm
Horizontāls
1.57N
0.6mm

Papildu dokumentācija
