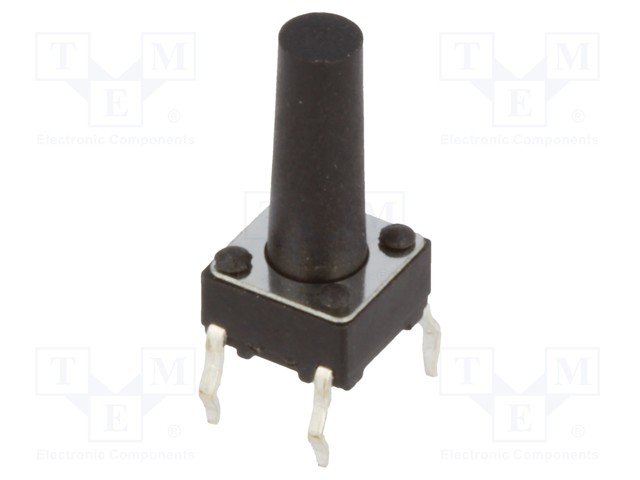

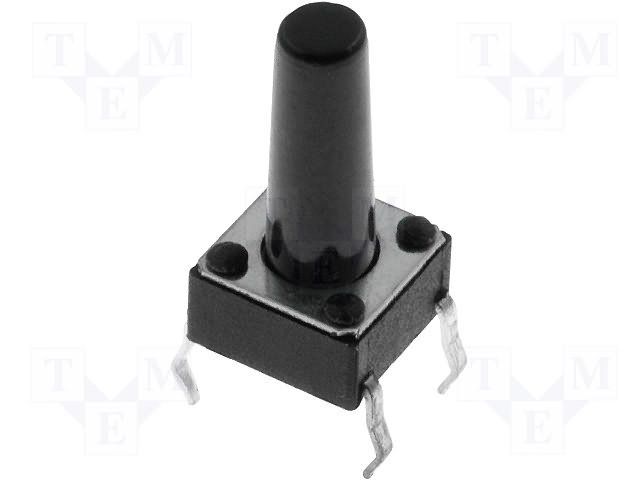

Mikroslēdzejs horizontāls, 6x6x4mm, SPST-NO, OFF-(ON), THT, 0.05A/12VDC, 1.6N, L=9.5mm
Mikroslēdzejs horizontāls, 6x6x4mm, SPST-NO, OFF-(ON), THT, 0.05A/12VDC, 1.6N, L=9.5mm
Mikroslēdzejs horizontāls, 6x6x4mm, SPST-NO, OFF-(ON), THT, 0.05A/12VDC, 1.6N, L=9.5mm Mikroslēdzejs horizontāls, 6x6x4mm, SPST-NO, OFF-(ON), THT, 0.05A/12VDC, 1.6N, L=9.5mm

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Mikroslēdzejs horizontāls, 6x6x4mm, SPST-NO, OFF-(ON), THT, 0.05A/12VDC, 1.6N, L=9.5mm

Cena: 0.27 €
00023710
TACT-613N-F
542
  • Apraksts

    • Manufacturer NINIGI
    • Type of switch microswitch TACT
    • Contacts configuration  SPST-NO
    • Number of positions 2
    • DC contacts rating @R  0.05A / 12V DC
    • Mounting THT
    • Illumination none
    • Operating Force 1.6N
    • Body dimensions 6x6mm
    • Button height  13mm
    • Switching method  OFF-(ON)
    • Terminal pitch 4.5x6.5mm
    • Operating temperature -25...70°C
    • Button shape round
    • Actuator colour black
    • Leads for PCB,  straight
    • Max. contact resistance: 50mΩ
    • Min. insulation resistance 100MΩ
    • Soldering temperature 250°C
    • Stable positions number 1
    • Additional information
    • Gross weight: 0.358 g

    Parametri

    THT
    SPST-NO
    0.05A/12VDC
    6x6x4mm
    Horizontāls
    1.6N
    9.5mm
