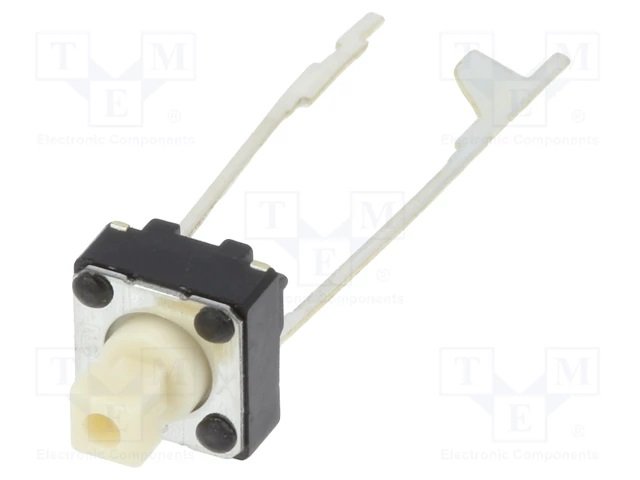

Mikroslēdzejs horizontāls, 6x6x4mm, SPST-NO, OFF-(ON), THT, 0.05A/24VDC, 0.98N, L=3.5mm, garie izvadi, 2pin, OMRON
Mikroslēdzejs horizontāls, 6x6x4mm, SPST-NO, OFF-(ON), THT, 0.05A/24VDC, 0.98N, L=3.5mm, garie izvadi, 2pin, OMRON
Mikroslēdzejs horizontāls, 6x6x4mm, SPST-NO, OFF-(ON), THT, 0.05A/24VDC, 0.98N, L=3.5mm, garie izvadi, 2pin, OMRON Mikroslēdzejs horizontāls, 6x6x4mm, SPST-NO, OFF-(ON), THT, 0.05A/24VDC, 0.98N, L=3.5mm, garie izvadi, 2pin, OMRON

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Mikroslēdzejs horizontāls, 6x6x4mm, SPST-NO, OFF-(ON), THT, 0.05A/24VDC, 0.98N, L=3.5mm, garie izvadi, 2pin, OMRON

Cena: 0.51 €
00008548
B3F-6050
65
  • Apraksts

    • Manufacturer OMRON OCB
    • Type of switch microswitch TACT
    • Contacts configuration  SPST-NO
    • Number of positions 2
    • DC contacts rating @R  0.05A / 24V DC
    • (at resistive load)
    • Mounting THT
    • Illumination none
    • Operating Force 980mN
    • Body dimensions 6x6mm
    • Button height  7.3mm
    • (measured from PCB)
    • Switching method  OFF-(ON)
    • (the position in bracket indicates momentary position.)
    • Operating temperature -25...70°C
    • Button shape square
    • Actuator colour ivory
    • Leads for PCB,  straight
    • Max. contact resistance: 100mΩ
    • Min. insulation resistance 100MΩ
    • Contact plating silver plated
    • IP rating IP00
    • Mechanical durability 1000000 cycles
    • Kind of package tape
    • Manufacturer series B3F
    • Stable positions number 1
    • Additional information
    • Gross weight: 0.361 g
    • Manufacturer part number: B3F6050

    Parametri

    THT
    SPST-NO
    0.05A/24VDC
    6x6x4mm
    Horizontāls
    0.98N
    3.5mm
