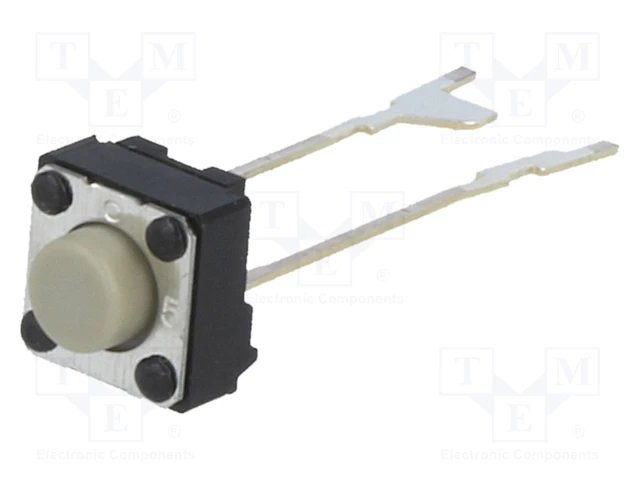

Apraksts

• Manufacturer OMRON OCB
• Type of switch microswitch TACT
• Contacts configuration  SPST-NO
• Number of positions 2
• DC contacts rating @R  0.05A / 24V DC
• (at resistive load)
• Mounting THT
• Illumination none
• Operating Force 1.47N

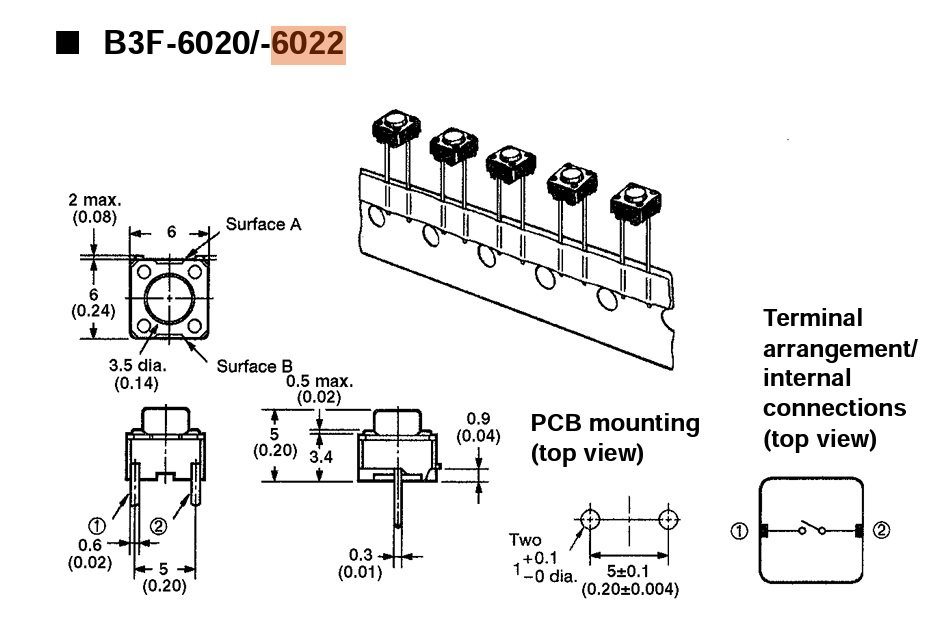

• Body dimensions 6x6mm
• Button height  5mm
• (measured from PCB)
• Switching method  OFF-(ON)
• (the position in bracket indicates momentary position.)
• Terminal pitch 5mm
• Operating temperature -25...70°C
• Button shape round
• Actuator colour grey
• Key stroke 0.25mm
• Leads for PCB,  straight
• Contact material phosphor bronze
• Max. contact resistance: 100mΩ
• Min. insulation resistance 100MΩ
• Contact plating silver plated
• Mechanical durability 300000 cycles
• Manufacturer series B3F
• Stable positions number 1
• Additional information
• Gross weight: 0.355 g
• Manufacturer part number: B3F-6022

Parametri

THT
SPST-NO
0.05A/24VDC
IP00
6x6x4mm
1.47N
1.5mm
Horizontāli
