Apraksts

• Specification
• Switch type microswitch
• Stable positions number monostable
• Contacts configuration SPST-NO
• DC contacts rating
• (at resistance load) 0.05 A / 12 VDC
• Mounting SMD
• Switching torque 1.6N

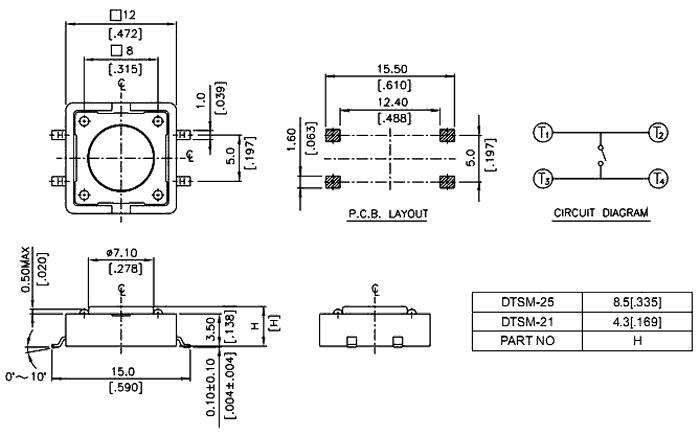

• Body dimensions 12 x 12mm
• Button height
• (measured from PCB) 8.5mm
• Operating temperature -25...70°C
• Max. contact resistance: 100mΩ;
• Min. insulation resistance 100MΩ;

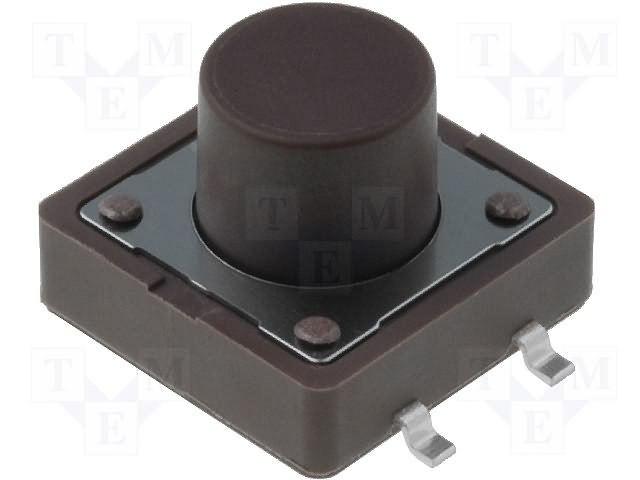

• Button shape round
• Actuator colour brown
• Soldering temperature 260°C / 5 s

Parametri

SMD
SPST-NO
0.05A/12VDC
12x12x4mm
1.6N
4.5mm
Horizontāli
