Apraksts

• Manufacturer DIPTRONICS
• Type of switch microswitch TACT
• Contacts configuration SPST-NO
• Number of positions 2
• DC contacts rating @R
• (at resistive load) 0.05A / 12V DC
• Mounting SMT
• Illumination LED
• Backlight colour green
• Operating Force 1.56N

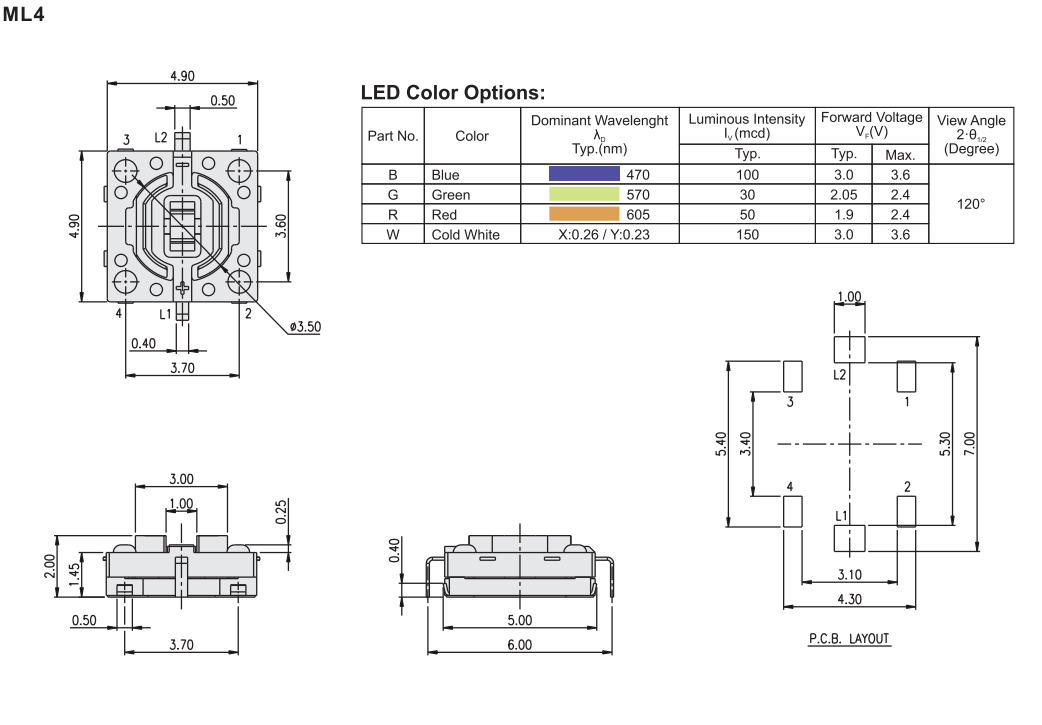

• Body dimensions 4.9x4.9mm
• Button height
• (measured from PCB) 2mm
• Switching method
• (item in brackets is instantaneous) OFF-(ON)
• Terminal pitch 3.7mm
• Operating temperature -40...85°C
• Button shape square
• Leads straight
• Max. contact resistance: 100mΩ
• Min. insulation resistance 100MΩ
• Manufacturer series ML4
• Mechanical durability 1000000 cycles
• Stable positions number 1 Additional information
• Gross weight: 0.005 g
• Manufacturer part number: ML4L12GQR

Parametri

SMD
SPST-NO
0.05A/12VDC
4.9x4.9x2mm
1.56N
0.5mm
Horizontāli
