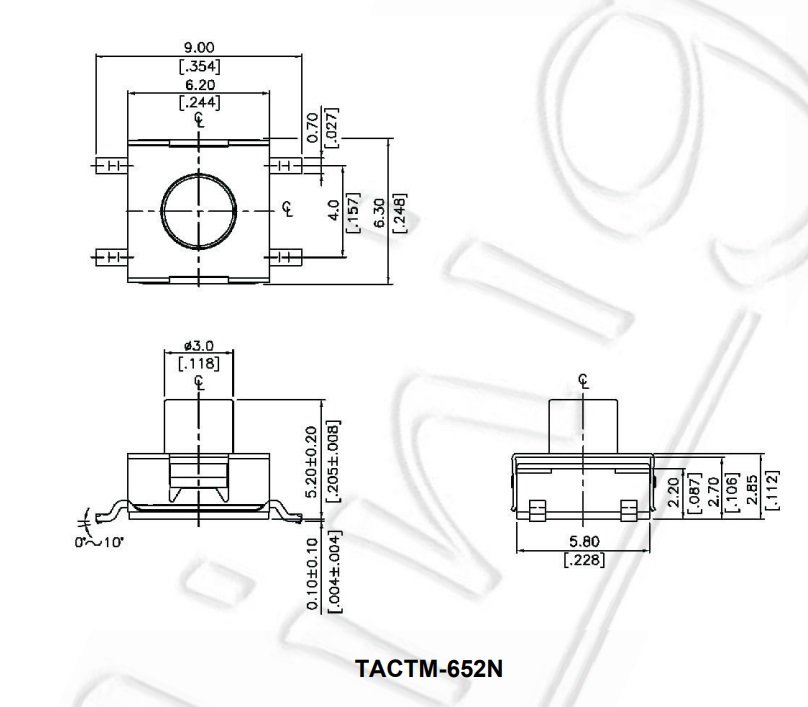

Mikroslēdzejs horizontāls, SPST-NO, OFF-(ON), 0.05A/12VDC, SMD, 6.2x6.2x2.85mm, 1.6N, L=2.3mm
Mikroslēdzejs horizontāls, SPST-NO, OFF-(ON), 0.05A/12VDC, SMD, 6.2x6.2x2.85mm, 1.6N, L=2.3mm
Mikroslēdzejs horizontāls, SPST-NO, OFF-(ON), 0.05A/12VDC, SMD, 6.2x6.2x2.85mm, 1.6N, L=2.3mm Mikroslēdzejs horizontāls, SPST-NO, OFF-(ON), 0.05A/12VDC, SMD, 6.2x6.2x2.85mm, 1.6N, L=2.3mm

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Mikroslēdzejs horizontāls, SPST-NO, OFF-(ON), 0.05A/12VDC, SMD, 6.2x6.2x2.85mm, 1.6N, L=2.3mm

Cena: 0.39 €
00018443
TACTM-652N
51
  • Apraksts

    • Manufacturer NINIGI
    • Type of switch microswitch TACT
    • Contacts configuration  SPST-NO
    • Number of positions 2
    • DC contacts rating @R  0.05A / 12V DC
    • Mounting SMT
    • Illumination none
    • Operating Force 1.6N
    • Body dimensions 6.2x6.2mm
    • Button height  5.2mm
    • Switching method  OFF-(ON)
    • Terminal pitch 4.5x8.5mm
    • Operating temperature -25...70°C
    • Button shape round
    • Actuator colour red
    • Leads for PCB
    • Stable positions number 1
    • Additional information
    • Gross weight: 0.244 g
    • Manufacturer part number: TACTM-652N

    Parametri

    SMD
    SPST-NO
    0.05A/12VDC
    6.2x6.2x2.85mm
    Horizontāls
    1.6N
    2.3mm
