Apraksts

• Manufacturer NINIGI
• Type of switch microswitch TACT
• Contacts configuration  SPST-NO
• Number of positions 0:00
• DC contacts rating @R  0.05A / 12V DC
• Mounting THT
• Illumination none
• Operating Force 2.5N

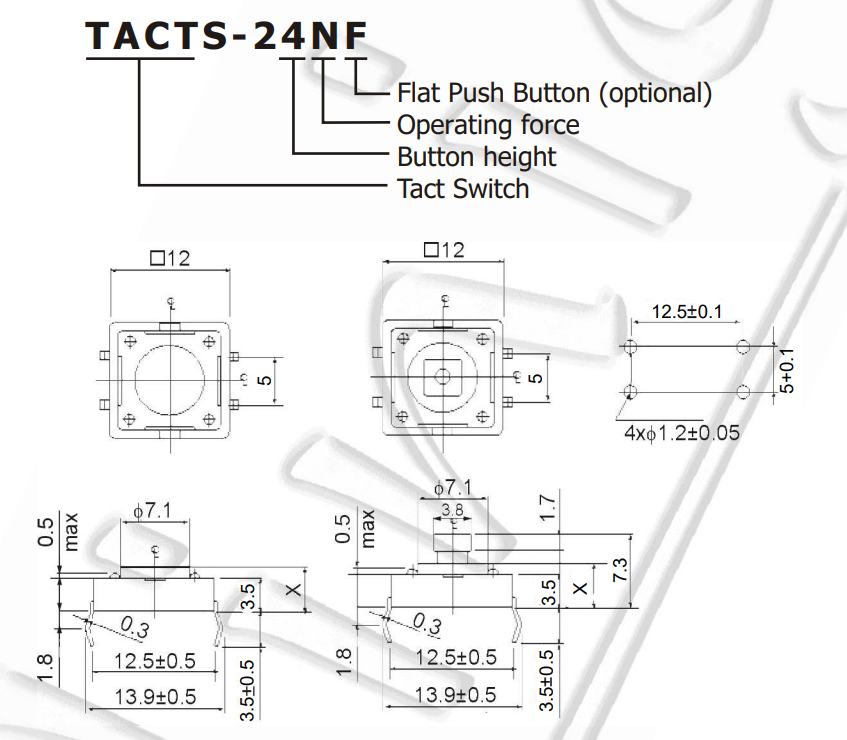

• Body dimensions 12x12mm
• Button height  7.3mm
• Switching method  OFF-(ON)
• Terminal pitch 5x12.5mm
• Operating temperature -25...70°C
• Button shape square
• Actuator colour yellow
• Button size 3.8x3.8mm
• Leads for PCB,  straight
• Max. contact resistance: 50mΩ
• Min. insulation resistance 100MΩ
• Soldering temperature 250°C
• Stable positions number 1
• Additional information
• Gross weight: 0.82 g

Parametri

THT
SPST-NO
0.05A/12VDC
12x12x4mm
2.5N
3.5mm
Horizontāli
