Apraksts

• Manufacturer OMRON
• Switch type microswitch
• Stable positions number 1-position
• Contacts configuration SPST-NO
• DC contacts rating
• (at resistance load) 0.05 A / 12 VDC
• Mounting THT
• Switching torque 1.96N

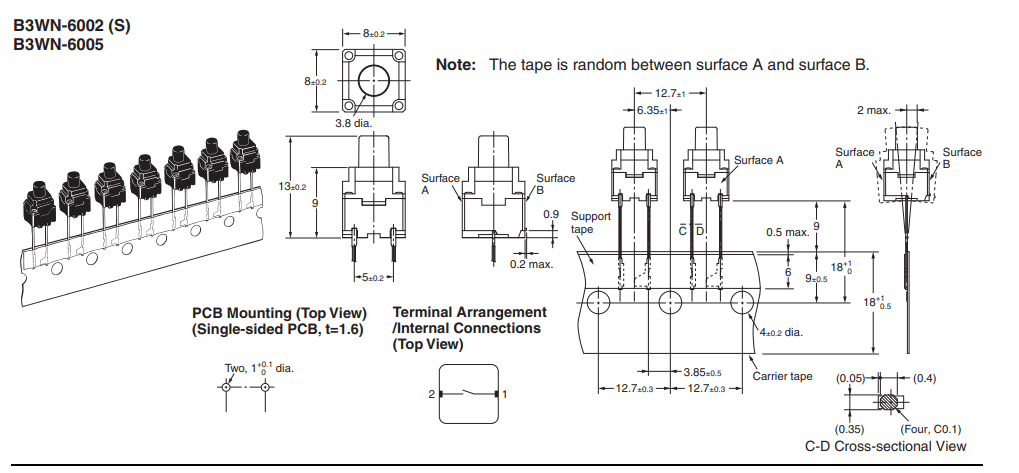

• Body dimensions 8 x 8mm
• Button height
• (measured from PCB) 13mm
• Switching method OFF-(ON)
• Button shape round
• Terminal pitch 5mm
• Operating temperature -25...85°C
• Actuator colour black
• Leads for PCB, straight
• Max. contact resistance: 100mΩ
• Min. insulation resistance 100MΩ
• Mechanical durability 100000cycles
• Key stroke 0.3mm
• Sealing IP67

Parametri

THT
SPST-NO
0.05A/12VDC
IP67
8x8x9mm
1.96N
4mm
Horizontāli
