Apraksts

• Manufacturer OMRON
• Type of switch microswitch TACT
• Contacts configuration SPST-NO
• Number of all positions 2
• Stable positions number 1-position
• DC contacts rating @R
• (at resistance load) 0.05 A / 24 VDC
• Mounting SMT
• Operating Force 1.5N

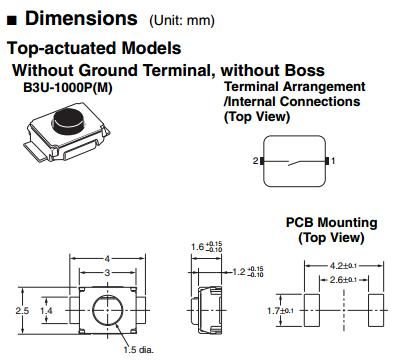

• Body dimensions 2.5 x 3mm
• Button height
• (measured from PCB) 1.6mm
• Switching method
• (item in brackets is instantaneous) OFF-(ON)
• Button shape round
• Terminal pitch 1.7x4.2mm
• Operating temperature -25...70°C
• Actuator colour black
• Leads for PCB
• Max. contact resistance: 100mΩ
• Min. insulation resistance 100MΩ
• Manufacturer series B3U
• Mechanical durability 200000cycles
• Key stroke 0.15mm

Parametri

SMD
SPST-NO
0.05A/24VDC
3x2.5x1.2mm
1.5N
0.5mm
Horizontāli
