Apraksts

• Manufacturer OMRON
• Type of switch microswitch TACT
• Contacts configuration SPST-NO
• Number of all positions 2
• Stable positions number 1-position
• DC contacts rating @R
• (at resistance load) 0.05 A / 24 VDC
• Mounting SMT
• Illumination none
• Operating Force 0.98N

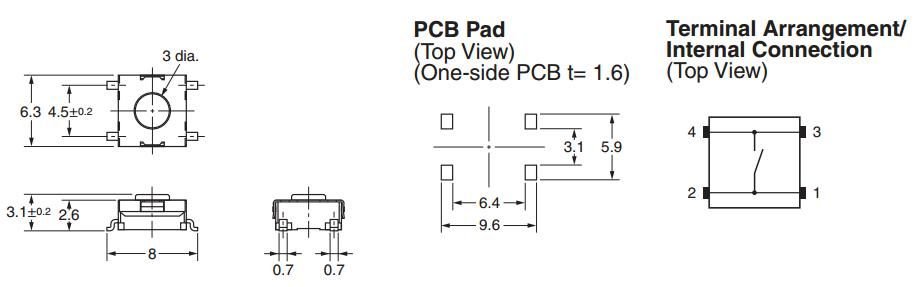

• Body dimensions 6 x 6mm
• Button height
• (measured from PCB) 3.1mm
• Switching method OFF-(ON)
• Button shape round
• Terminal pitch 5.9x9.6mm
• Operating temperature -25...70°C
• Actuator colour black
• Leads for PCB
• Max. contact resistance: 100mΩ
• Min. insulation resistance 100MΩ
• Manufacturer series B3FS
• Mechanical durability 1000000cycles
• Key stroke 0.25mm

Parametri

SMD
SPST-NO
0.05A/24VDC
6x6x2.6mm
0.98N
0.5mm
Horizontāli
