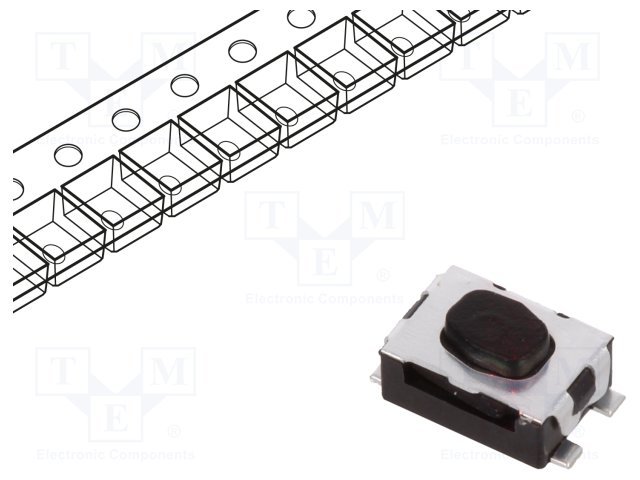

Apraksts

• Manufacturer C&K
• Type of switch microswitch TACT
• Contacts configuration SPST-NO
• Number of all positions 2
• Stable positions number 1-position
• DC contacts rating @R
• (at resistance load) 0.05 A / 32 VDC
• Mounting SMT
• Illumination none
• Operating Force 1.2N

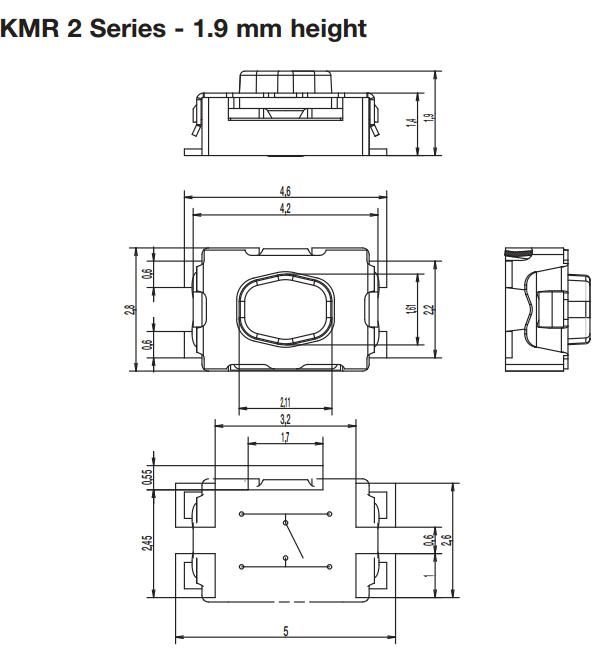

• Body dimensions 2.8 x 4.2 x 1.4mm
• Button height
• (measured from PCB) 1.9mm
• Switching method OFF-(ON)
• Operating temperature -40...85°C
• Leads for PCB
• Max. contact resistance: 100mΩ
• Min. insulation resistance 1000MΩ
• Manufacturer series KMR
• IP rating IP40

Parametri

SMD
SPST-NO
0.05A/32VDC
IP40
4.2x2.8x1.4mm
1.2N
0.5mm
Horizontāli
