Mikroslēdzejs leņķisks, SPST-NO, OFF-(ON), 0.05A/32VDC, SMD, 5.5x3.5x1.7mm, 2N, L=0.8mm, IP40
Mikroslēdzejs leņķisks, SPST-NO, OFF-(ON), 0.05A/32VDC, SMD, 5.5x3.5x1.7mm, 2N, L=0.8mm, IP40
Mikroslēdzejs leņķisks, SPST-NO, OFF-(ON), 0.05A/32VDC, SMD, 5.5x3.5x1.7mm, 2N, L=0.8mm, IP40 Mikroslēdzejs leņķisks, SPST-NO, OFF-(ON), 0.05A/32VDC, SMD, 5.5x3.5x1.7mm, 2N, L=0.8mm, IP40

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Mikroslēdzejs leņķisks, SPST-NO, OFF-(ON), 0.05A/32VDC, SMD, 5.5x3.5x1.7mm, 2N, L=0.8mm, IP40

Cena: 0.80 €
00027573
KSS221GLFS
14
  • Apraksts

    • Manufacturer C&K
    • Type of switch microswitch TACT
    • Contacts configuration SPST-NO
    • Number of positions 2
    • DC contacts rating @R
    • (at resistive load) 0.05A / 32V DC
    • Mounting SMT
    • Illumination none
    • Operating Force 2N

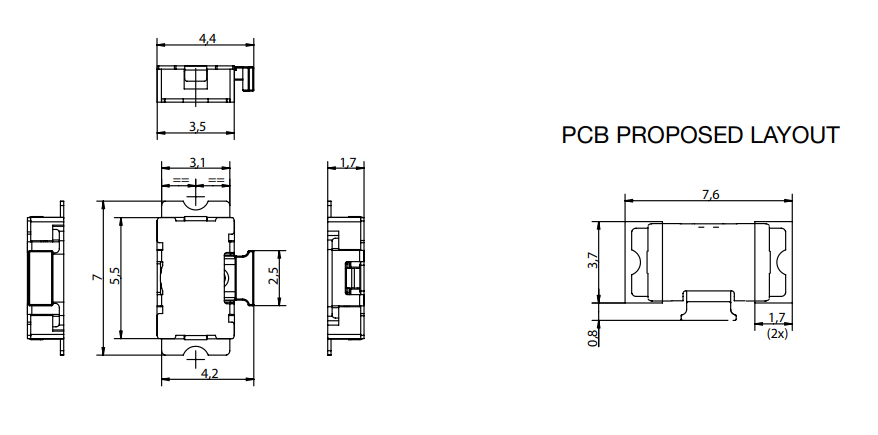

    • Body dimensions 5.5x3.5mm
    • Switching method
    • (item in brackets is instantaneous) OFF-(ON)
    • Operating temperature -40...85°C
    • Leads for PCB
    • Max. contact resistance: 100mΩ
    • Min. insulation resistance 1GΩ
    • Manufacturer series KSS
    • IP rating IP40
    • Mechanical durability 100000 cycles
    • Kind of package reel
    • Quantity in package 3000pcs.
    • Stable positions number 1 Additional information
    • Gross weight: 0.193 g
    • Manufacturer part number: KSS221G LFS

    Parametri

    SMD
    SPST-NO
    0.05A/32VDC
    IP40
    5.5x3.5x1.7mm
    2N
    0.8mm
    Leņķisks 90°
