Apraksts

• Manufacturer SCI
• Type of switch ROCKER
• Contacts configuration  SP3T
• Number of positions 3
• Switching method  ON-OFF-ON
• AC contacts rating @R  10A / 250V AC
• Key button colour black
• Illumination none
• Max. contact resistance: 50mΩ
• Body colour black
• Body material polyamide
• Flammability rating UL94V-2
• Operating temperature -20...85°C
• Leads 4,8x0,8mm connectors
• Panel thickness max. 3mm
• Electrical life 6000 cycles
• Mounting hole diameter Ø20.2mm
• Button marking I-O-II
• Shape round
• Related items R13-112-12
• Manufacturer series R13-112-AC
• Stable positions number 3

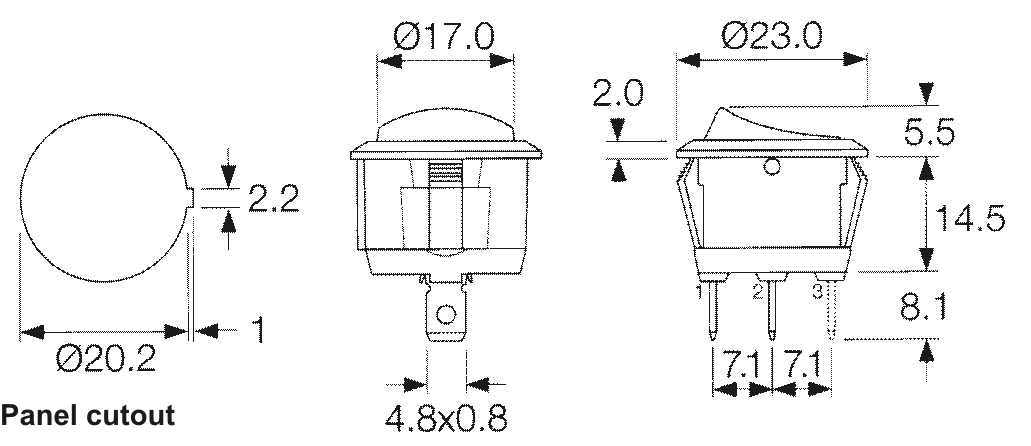

• Dimensions see
• Additional information
• Gross weight: 6.3 g
• Manufacturer part number: R13-112D-BB-7D

Parametri

SP3T
6A/250VAC
20A/12VDC
ON-OFF-ON
3
IP00
3
Taustiņslēdzis
Ar fiksāciju
1
Bez apgaismojuma

Papildu dokumentācija
