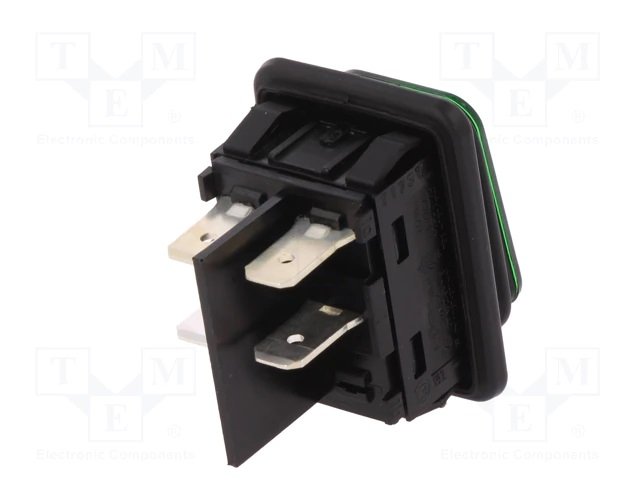

Apraksts

• Manufacturer Marquardt
• Type of switch ROCKER
• Contacts configuration DPST
• Number of positions 2
• Stable positions number 2-position
• Switching method
• (item in brackets is instantaneous) OFF-ON
• AC contacts rating @R
• (at resistance load) 20A / 250V AC
• AC contacts rating @L
• (at inductive load) 4A / 250V AC
• Key button colour black
• IP rating IP40
• Illumination none
• Max. contact resistance: 100mΩ
• Body colour black
• Flammability rating UL94V-2
• Operating temperature -20...105°C
• Leads 6,3x0,8mm connectors
• Panel thickness max. 3mm
• Mounting hole diameter 30.6x22mm
• Button marking O-I
• Backlight colour none
• Shape rectangular
• Related items 203.201.011
• Manufacturer series 1832
• Button shape rectangular
• Dimensions 31.5x25x16.2mm
• Contact plating silver plated Additional information
• Gross weight: 10.3 g

Parametri

DPST
20A/250VAC
OFF-ON
2
IP65
2
Taustiņslēdzis
Ar fiksāciju
2
230VAC

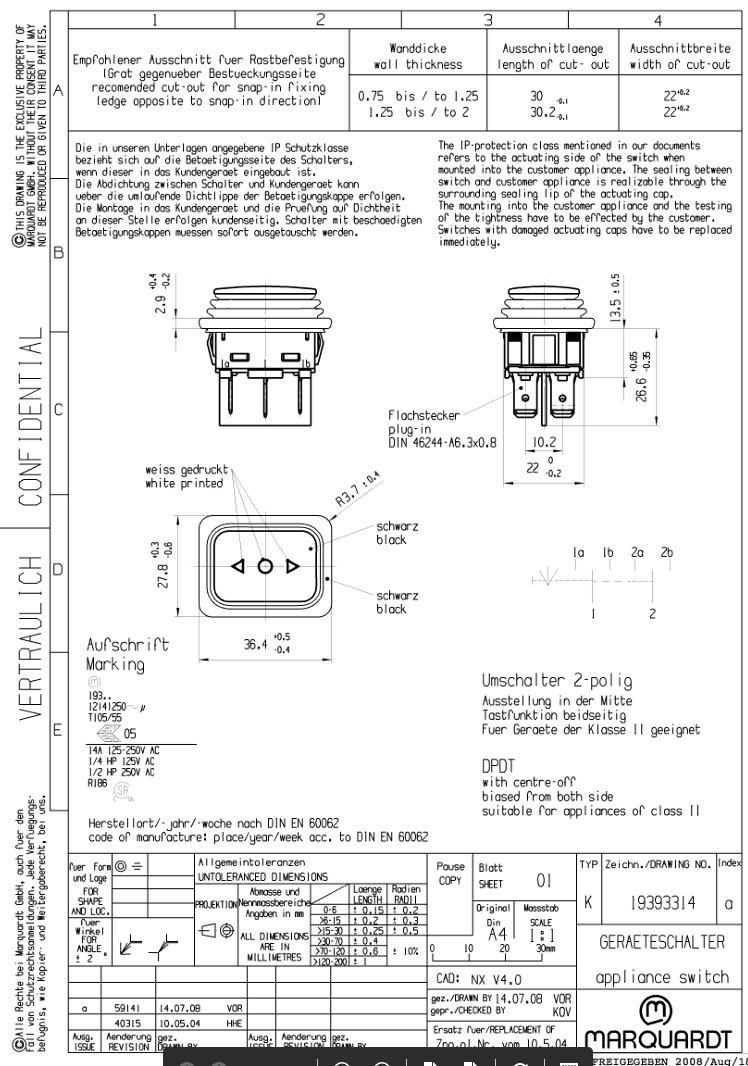

Papildu dokumentācija
