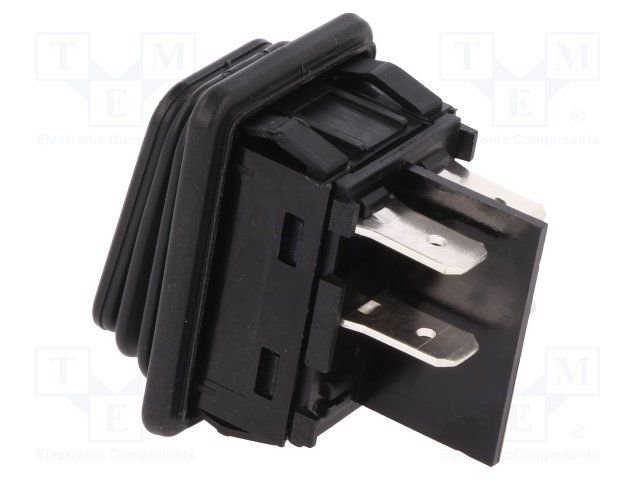

Taustiņslēdzis DPST, OFF-ON, 20A/250VAC, 36.4x27.8x26.5mm, IP65, (O-I), 6.3x0.8mm, melnā krasa, ar fiksāciju, Marquardt

Cena: 5.55 €
00026887
1932.3112
4
  • Apraksts

    • Manufacturer Marquardt
    • Type of switch ROCKER
    • Contacts configuration DPST
    • Number of positions 2
    • Stable positions number 2-position
    • Switching method
    • (item in brackets is instantaneous) OFF-ON
    • AC contacts rating @R
    • (at resistance load) 20A / 250V AC
    • Key button colour black
    • IP rating IP65 (from the front)
    • Illumination none
    • Max. contact resistance: 100mΩ
    • Body colour black
    • Operating temperature -30...80°C
    • Leads 6,3x0,8mm connectors
    • Panel thickness max. 3mm
    • Mounting hole diameter 30.2x22mm
    • Button marking O-I
    • Backlight colour none
    • Shape rectangular
    • Manufacturer series 1932
    • Button shape rectangular
    • Dimensions 36.4x27.8x26.5mm
    • Contact material silver Additional information
    • Gross weight: 12.72 g
