Apraksts

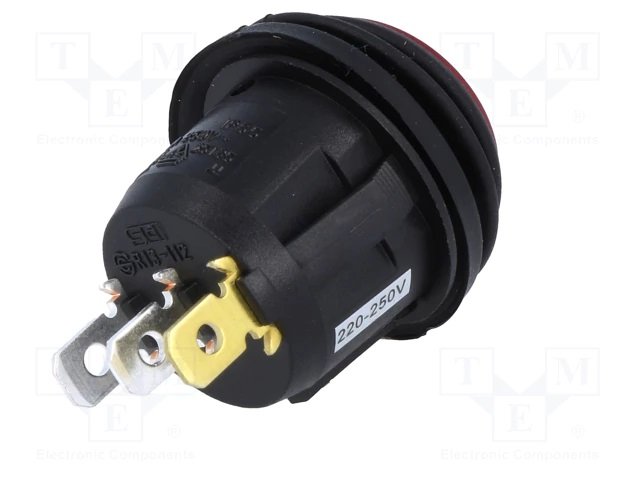

• Switch type ROCKER
• Flammability rating UL94V-2
• Leads 4.8 x 0.8 mm blades
• Contacts configuration SPST
• Switching method ON-OFF
• AC contacts rating* 10 A / 250 V
• Max. contact resistance: 50 mΩ;
• Test voltage 1.5 kV
• Body material polyamide

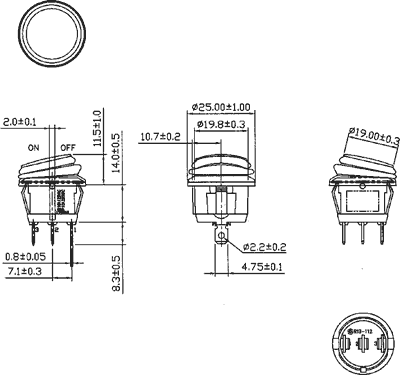

• Body dimensions Ø;19.5 x 14.5 mm
• Panel thickness max 2.5 mm
• Sealing IP65

Parametri

SPST
10A/250VAC
OFF-ON
2
IP65
2
Taustiņslēdzis
Ar fiksāciju
1
230VAC

Papildu dokumentācija
