Apraksts

• Specification
• Switch type ROCKER
• Stable positions number 2-position
• Contacts configuration SPST
• Switching method ON-OFF
• AC contacts rating
• (at resistance load) 10 A / 250 VAC
• Key button colour blue
• Sealing IP65
• Illumination neon lamp 230V
• Max. contact resistance: 50mΩ;
• Flammability rating UL94V-2
• Operating temperature -20...85°C
• Leads 4.8x0.8mm connectors
• Panel thickness max 2.5mm
• Mounting hole diameter Ø;20.2mm
• Number of positions 2
• Button marking blank
• Backlight colour orange
• Body material polyamide

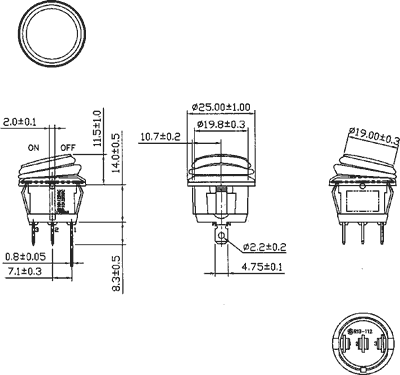

• Body dimensions Ø;19.5 x 14.5mm
• Test voltage 1.5kV

Parametri

SPST
10A/250VAC
OFF-ON
2
IP65
2
Taustiņslēdzis
Ar fiksāciju
1
230VAC

Papildu dokumentācija
