Apraksts

• Manufacturer SCI
• Type of switch ROCKER
• Contacts configuration SPST
• Number of positions 2
• Stable positions number 2-position
• Switching method
• (item in brackets is instantaneous) OFF-ON
• DC contacts rating @R
• (at resistance load) 16A / 12V DC
• Key button colour orange
• IP rating IP65
• Illumination LED 12V DC
• Max. contact resistance: 50mΩ
• Body colour black
• Flammability rating UL94V-2
• Operating temperature -20...85°C
• Leads 6,3x0,8mm connectors
• Panel thickness max. 3mm
• Mounting hole diameter 19.8x13mm
• Button marking blank
• Backlight colour orange
• Shape rectangular
• Manufacturer series R13-66-DC
• Button shape rectangular

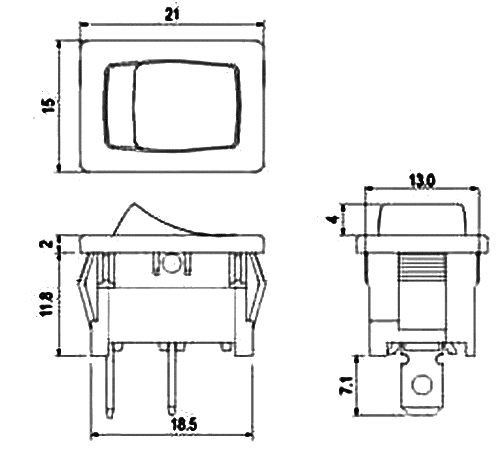

• Body dimensions 21x15x13.8mm
• Dielectric strenght 1.5kV AC

Parametri

SPST
16A/12VDC
OFF-ON
2
IP65
2
Taustiņslēdzis
Ar fiksāciju
1
LED12VDC
