Apraksts

• Type of switch ROCKER
• Contacts configuration  DPDT
• Number of positions 2
• Switching method  ON-ON
• AC contacts rating @R  15A / 250V AC
• Key button colour black
• Illumination none
• Max. contact resistance: 35mΩ
• Body colour black
• Operating temperature -30...80°C
• Leads 6,3x0,8mm connectors
• Electrical life 10000 cycles
• Mounting hole diameter 31x22.3mm
• Button marking I-II
• Related items RSC09
• Button shape rectangular
• Height above panel 9.4mm
• Stable positions number 2

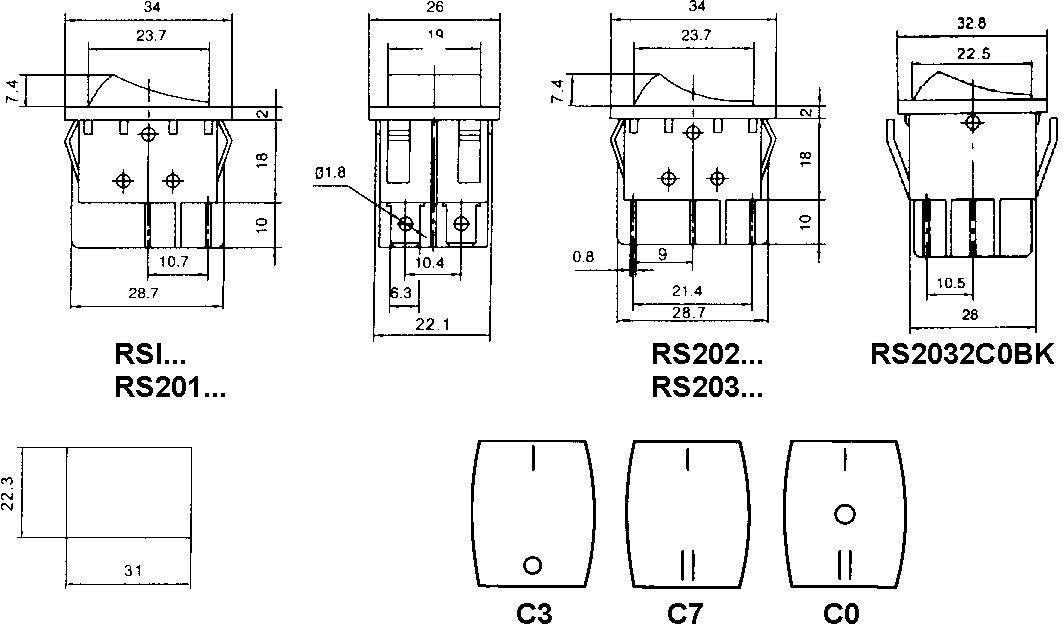

• Dimensions see
• Panel cutout see
• Button marking see
• Additional information
• Gross weight: 14.62 g
• Manufacturer part number: RS2023C7BK

Parametri

DPDT
15A/250VAC
ON-ON
2
IP00
2
Taustiņslēdzis
Ar fiksāciju
2
Bez apgaismojuma

Papildu dokumentācija
