Apraksts

• Manufacturer NINIGI
• Type of switch ROCKER
• Contacts configuration  SP3T
• Number of positions 3
• Switching method  ON-OFF-ON
• (the position in bracket indicates momentary position.)
• AC contacts rating @R  3A / 250V AC
• (at resistive load)
• Key button colour black
• Illumination none
• Max. contact resistance: 20mΩ
• Operating temperature -55...85°C
• Leads for soldering
• Electrical life 20000 cycles
• Button marking blank
• Shape rectangular
• Stable positions number 3

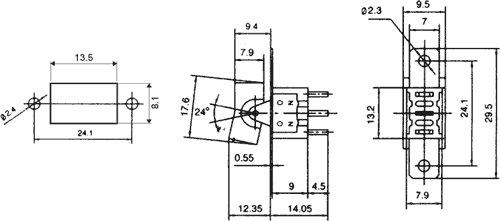

• Dimensions see
• Additional information
• Gross weight: 4.7 g
• Manufacturer part number: RSL-103A1

Parametri

SP3T
3A/250VAC
ON-OFF-ON
3
IP00
3
Taustiņslēdzis
Ar fiksāciju
1
Bez apgaismojuma

Papildu dokumentācija
