Apraksts

• Type of switch ROCKER
• Contacts configuration  SPST
• Number of positions 2
• Switching method  OFF-ON
• (the position in bracket indicates momentary position.)
• AC contacts rating @R  15A / 250V AC
• (at resistive load)
• Key button colour red
• Illumination neon lamp
• Max. contact resistance: 35mΩ
• Body colour black
• Operating temperature -30...80°C
• Leads 6,3x0,8mm connectors
• Electrical life 10000 cycles
• Mounting hole diameter 30.3x10.6mm
• Button marking I-O
• Backlight colour red
• Shape rectangular
• Stable positions number 2

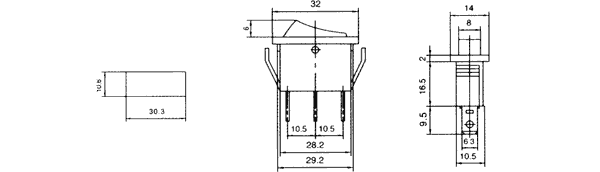

• Dimensions see
• Button marking see
• Additional information
• Gross weight: 7.067 g
• Manufacturer part number: RSI1013C3RD

Parametri

SPST
15A/250VAC
OFF-ON
2
IP00
2
Taustiņslēdzis
Ar fiksāciju
1
230VAC

Papildu dokumentācija
