Apraksts

• Manufacturer SCI
• Type of switch ROCKER
• Contacts configuration  SPST
• Number of positions 2
• Switching method  OFF-ON
• (the position in bracket indicates momentary position.)
• DC contacts rating @R  16A / 12V DC
• (at resistive load)
• Key button colour black
• Illumination LED 12V DC,  point
• Max. contact resistance: 50mΩ
• Body colour black
• Body material polyamide
• Flammability rating UL94V-2
• Operating temperature -20...85°C
• Leads 4,8x0,8mm connectors
• Panel thickness max. 3mm
• Electrical life 6000 cycles
• Mounting hole diameter 19.4x13mm
• Button marking blank
• Backlight colour green
• Shape rectangular
• Related items R13-66A-29
• Manufacturer series R13-66-DC
• Stable positions number 2

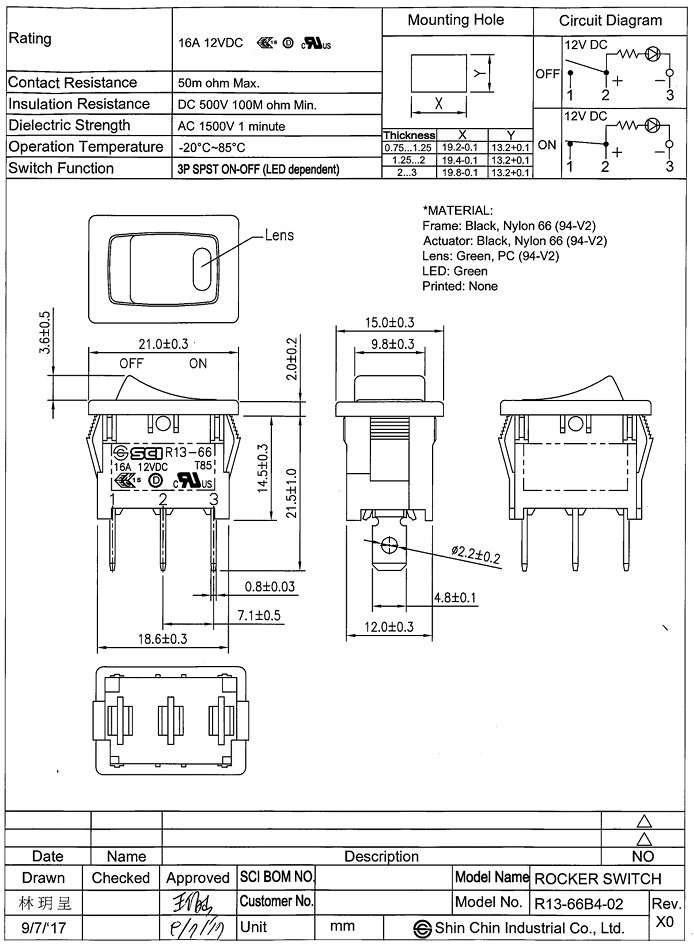

• Dimensions see
• Additional information
• Gross weight: 4.337 g
• Manufacturer part number: R13-66B4-02-BBG-L1

Parametri

SPST
16A/12VDC
OFF-ON
2
IP00
2
Taustiņslēdzis
Ar fiksāciju
1
LED12VDC

Papildu dokumentācija
