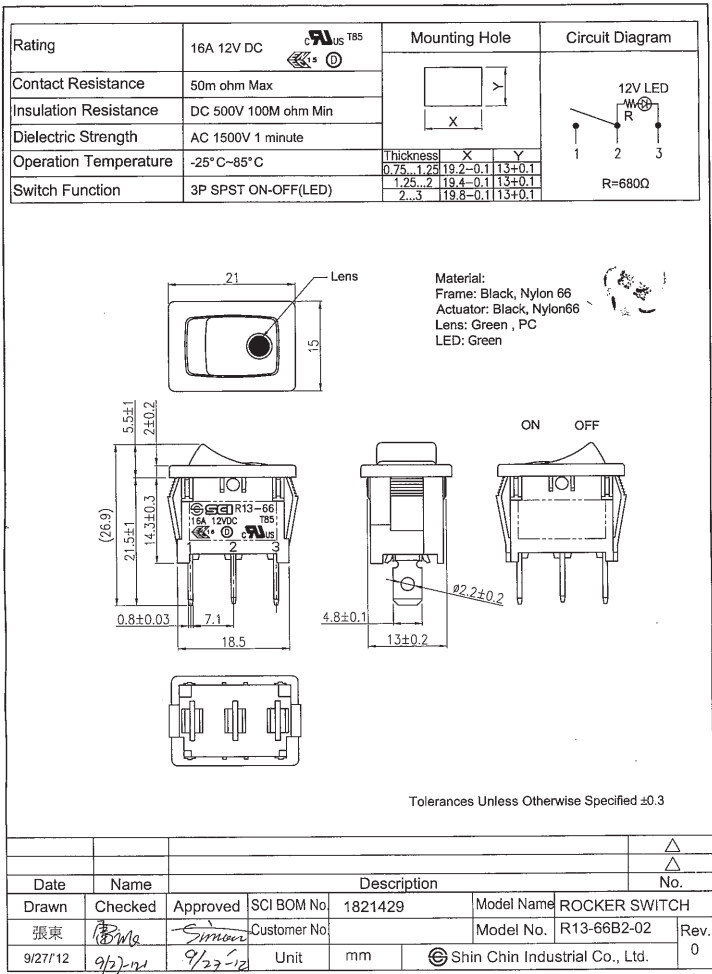

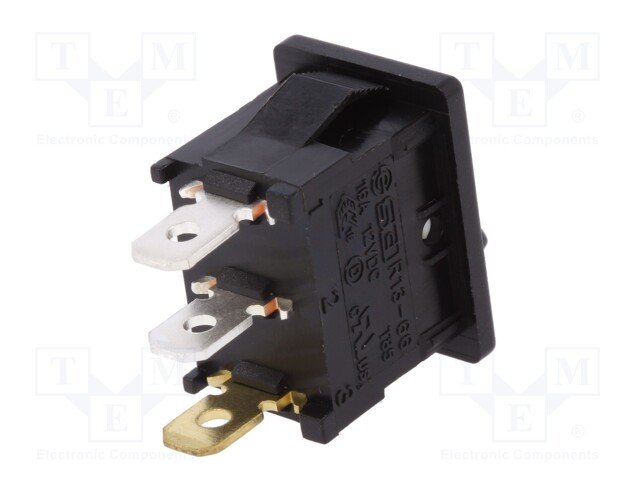

Apraksts

• Manufacturer SCI
• Type of switch ROCKER
• Contacts configuration  SPST
• Number of positions 2
• Switching method  OFF-ON
• DC contacts rating @R  16A / 12V DC
• Key button colour black
• Illumination LED 12V DC,  point
• Max. contact resistance: 50mΩ
• Body colour black
• Operating temperature -20...85°C
• Leads 4,8x0,8mm connectors
• Panel thickness max. 3mm
• Mounting hole diameter 19.8x13mm
• Button marking blank
• Backlight colour green
• Shape rectangular
• Manufacturer series R13-66-DC
• Button shape rectangular
• Body dimensions 21x15x16.3mm
• Stable positions number 2
• Dielectric strength 1.5kV AC
• Additional information
• Gross weight: 4.33 g
• Manufacturer part number: R13-66B2-02-BBG

Parametri

SPST
16A/12VDC
OFF-ON
2
IP00
2
Taustiņslēdzis
Ar fiksāciju
1
LED12VDC
