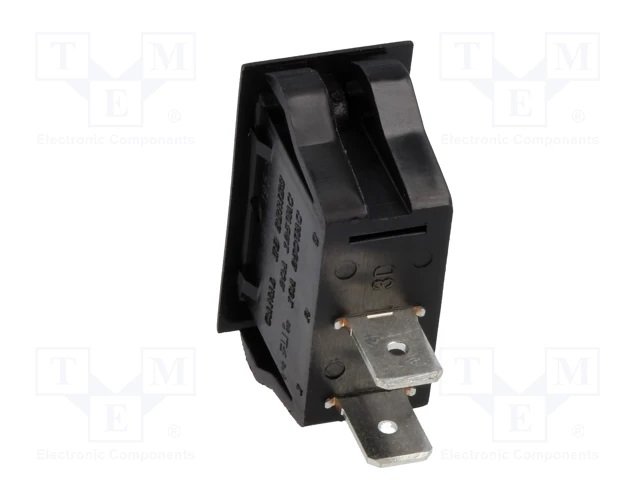

Apraksts

• Manufacturer CANAL ELECTRONIC
• Switch type ROCKER
• Stable positions number 2-position
• Contacts configuration SPST
• Switching method ON-OFF
• AC contacts rating
• (at resistance load) 16 A / 250 VAC
• Key button colour black-red
• Max. contact resistance: 20mΩ
• Flammability rating UL94V-2
• Operating temperature -20...80°C
• Leads 6.3x0.8mm connectors
• Electrical life 10000cycles
• Mounting hole diameter 28.6 x 13.8mm
• Number of positions 2
• Button marking ON OFF
• Body material polyamide

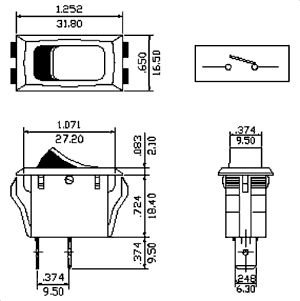

• Body dimensions 27.2 x 13.8 x 18.4mm
• Height above panel 8mm
• Terminals plating silver plated
• Contact material silver alloy
• Terminals material copper alloy
• Min. insulation resistance 100MΩ

Parametri

SPST
16A/250VAC
OFF-ON
2
IP00
2
Taustiņslēdzis
Ar fiksāciju
1
Bez apgaismojuma
