Apraksts

• Manufacturer CANAL ELECTRONIC
• Type of switch ROCKER
• Contacts configuration  SPST
• Number of positions 2
• Switching method  OFF-ON
• (the position in bracket indicates momentary position.)
• AC contacts rating @R  16A / 250V AC
• (at resistive load)
• Key button colour black-green
• Illumination none
• Max. contact resistance: 20mΩ
• Body colour black
• Body material polyamide
• Flammability rating UL94V-2
• Operating temperature -20...80°C
• Leads 6,3x0,8mm connectors
• Electrical life 10000 cycles
• Mounting hole diameter 28.6x13.8mm
• Button marking OFF,  ON
• Shape rectangular
• Body dimensions 27.2x13.8x18.4mm
• Contact material silver alloy
• Height above panel 8mm
• Terminals material copper alloy
• Terminals plating silver plated
• Min. insulation resistance 100MΩ
• Stable positions number 2

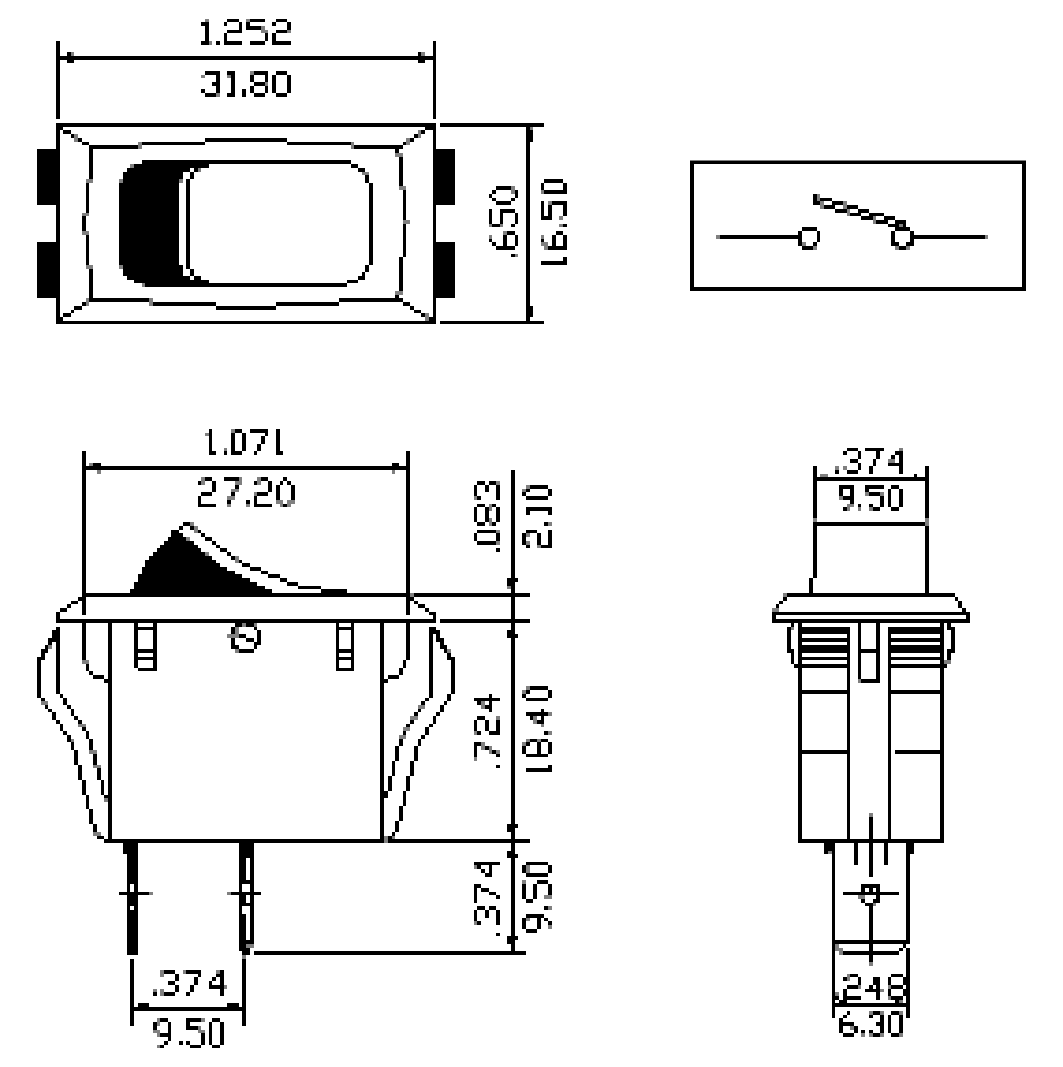

• Dimensions see
• Additional information
• Gross weight: 6.85 g
• Manufacturer part number: HB-110-C7N-BBG-A

Parametri

SPST
16A/250VAC
OFF-ON
2
IP00
2
Taustiņslēdzis
Ar fiksāciju
1
Bez apgaismojuma
