Apraksts

• Manufacturer SCI
• Type of switch ROCKER
• Contacts configuration  SP3T
• Number of positions 3
• Switching method  (ON)-OFF-(ON)
• (the position in bracket indicates momentary position.)
• AC contacts rating @R  10A / 250V AC
• (at resistive load)
• Key button colour black
• Illumination none
• Max. contact resistance: 50mΩ
• Body colour black
• Body material polyamide
• Flammability rating UL94V-2
• Operating temperature -20...85°C
• Leads 6,3x0,8mm connectors
• Panel thickness max. 3mm
• Electrical life 6000 cycles
• Mounting hole diameter 30.4x11.2mm
• Button marking I-O-II
• Shape rectangular
• Manufacturer series R13-91-AC
• Stable positions number 1

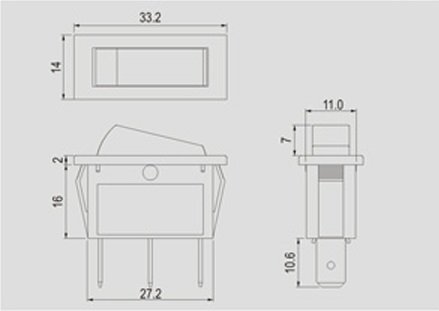

• Dimensions see
• Additional information
• Gross weight: 7.385 g
• Manufacturer part number: R13-91I-01-BB-7D

Parametri

SP3T
10A/250VAC
(ON)-OFF-(ON)
3
IP00
1
Taustiņslēdzis
Bez fiksācijas
1
Bez apgaismojuma
